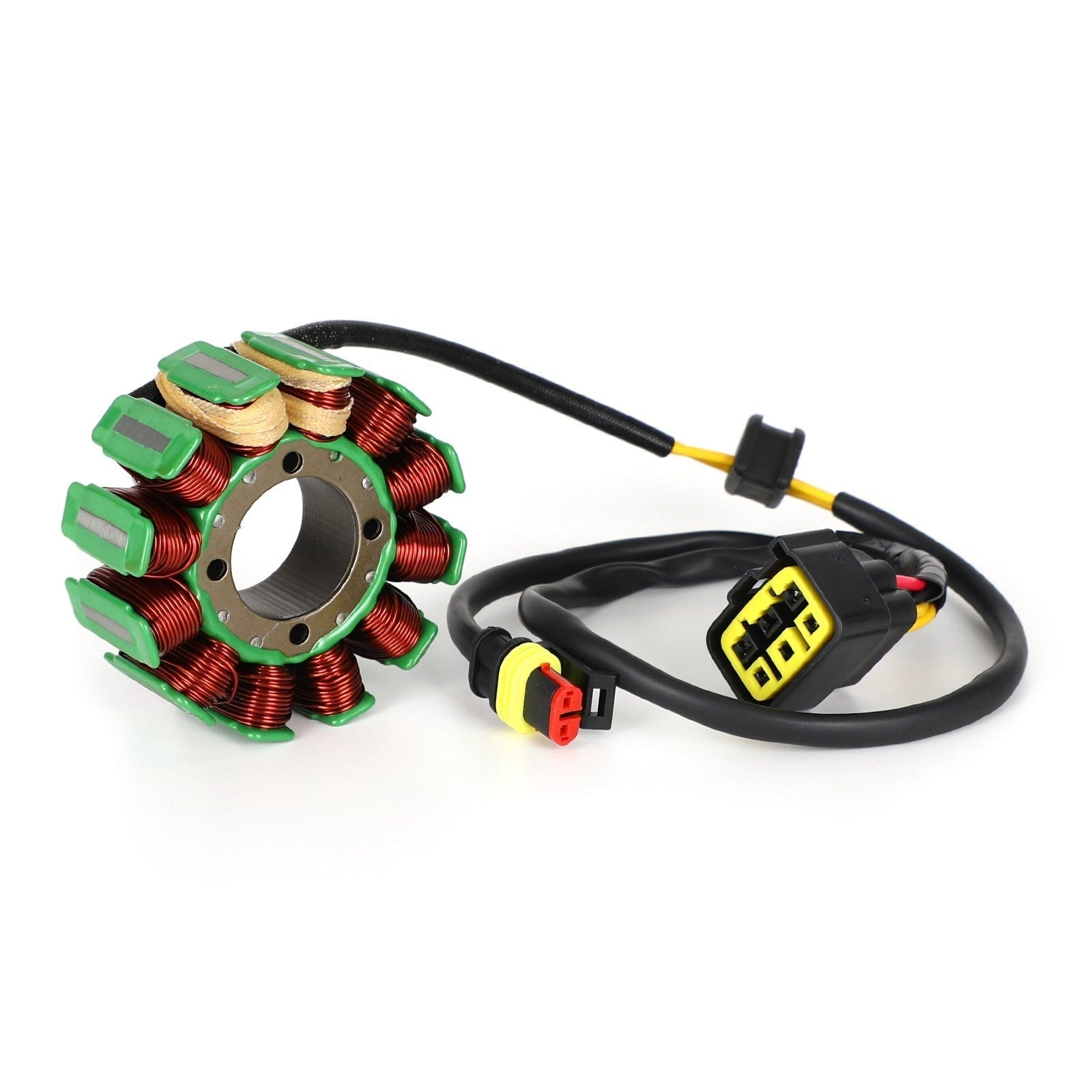

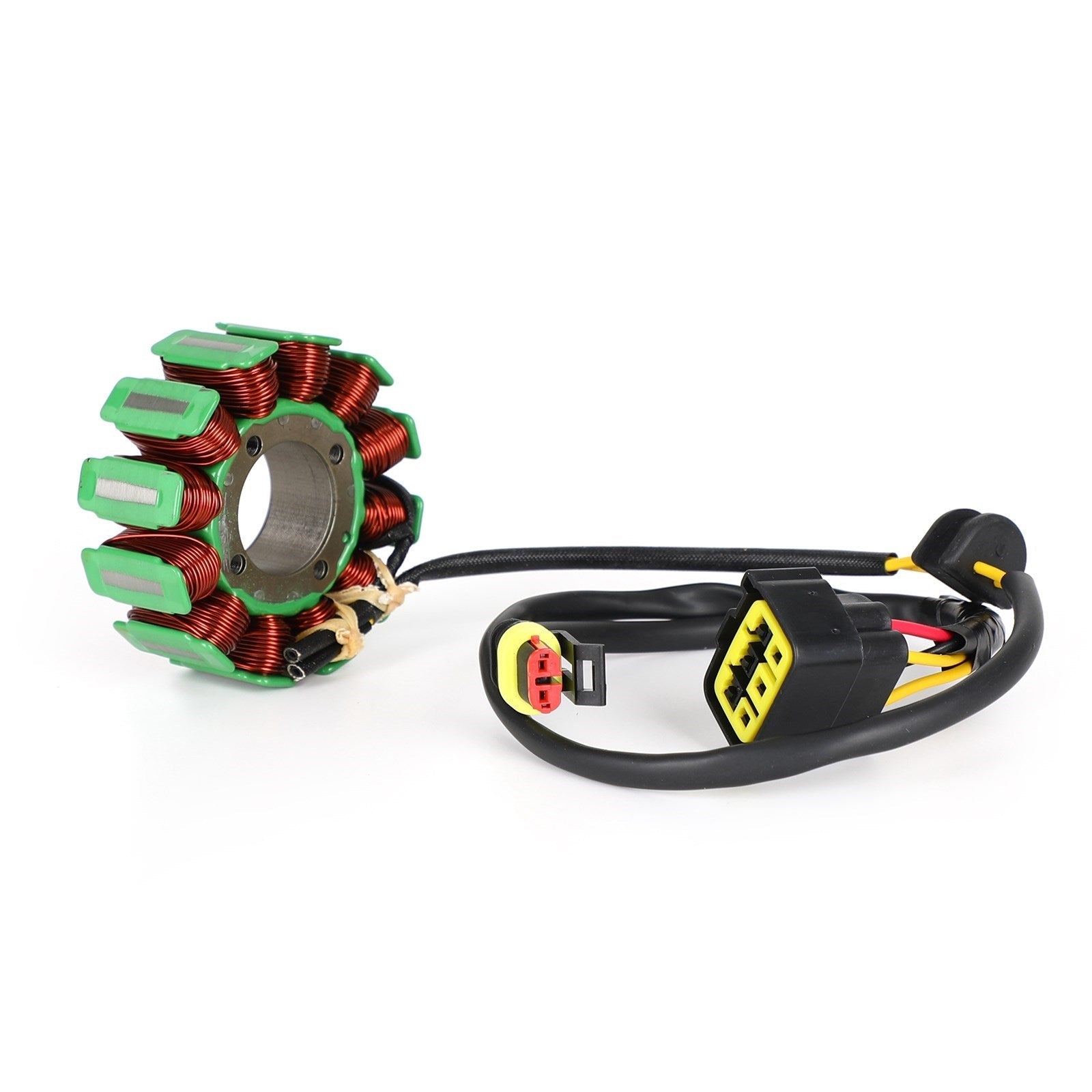

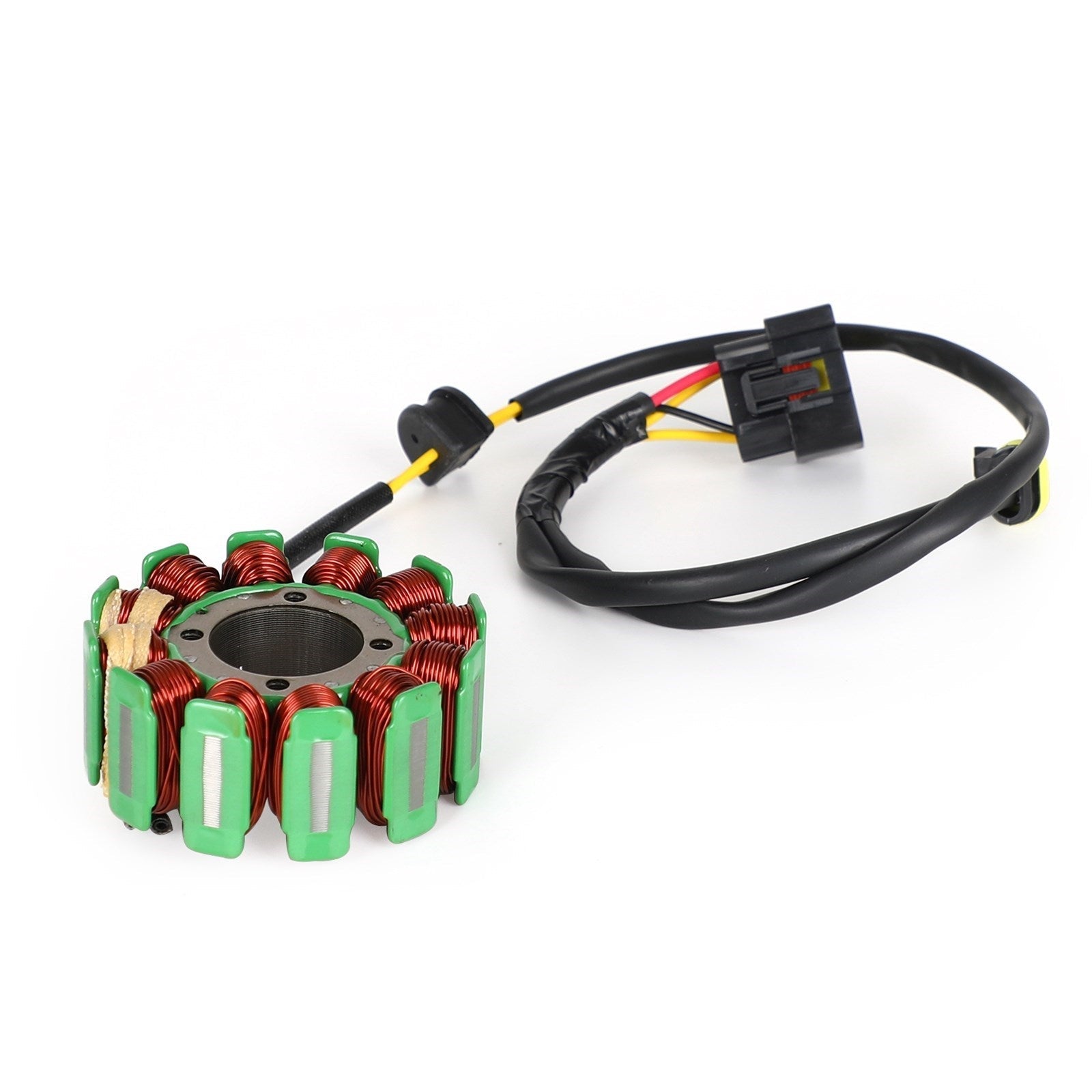

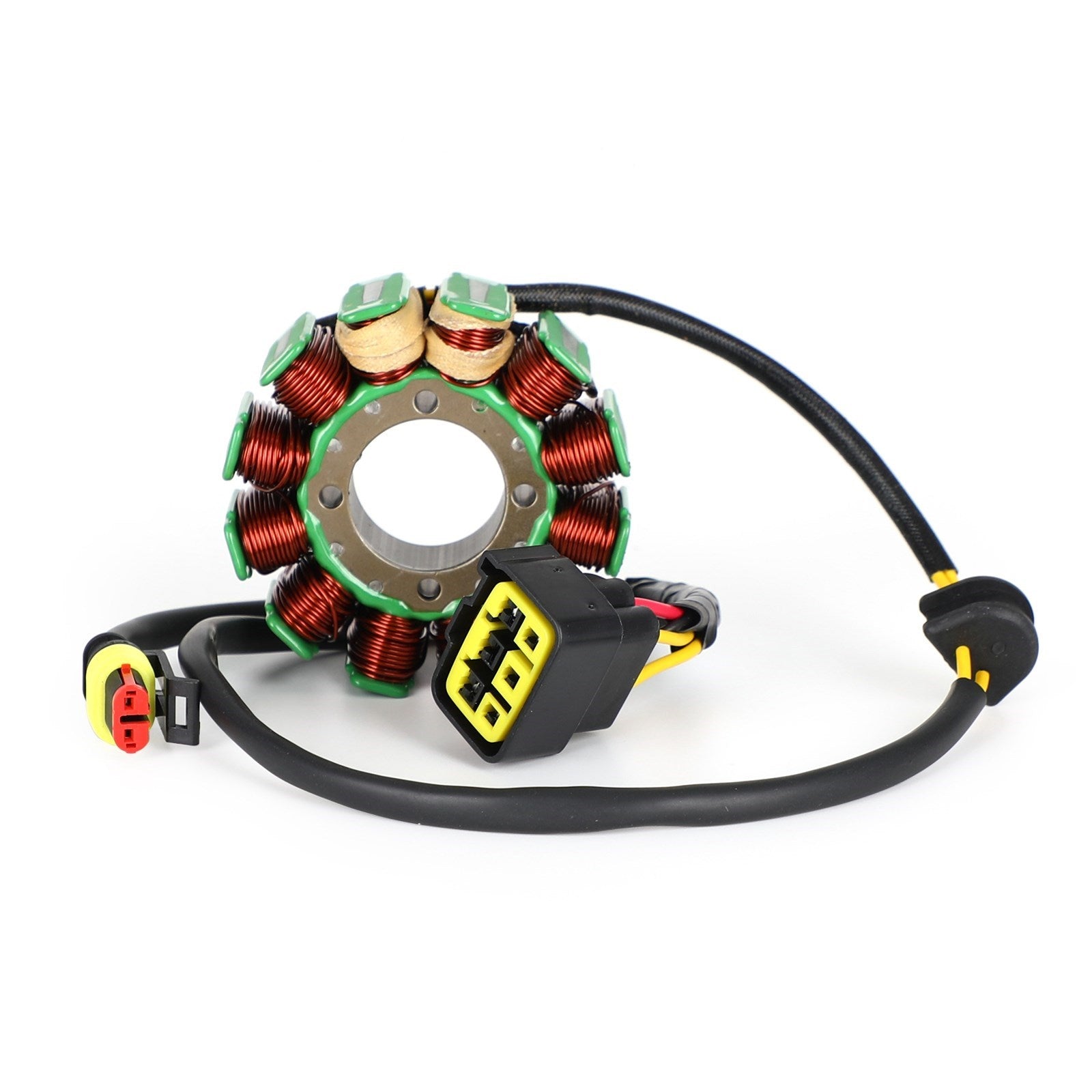

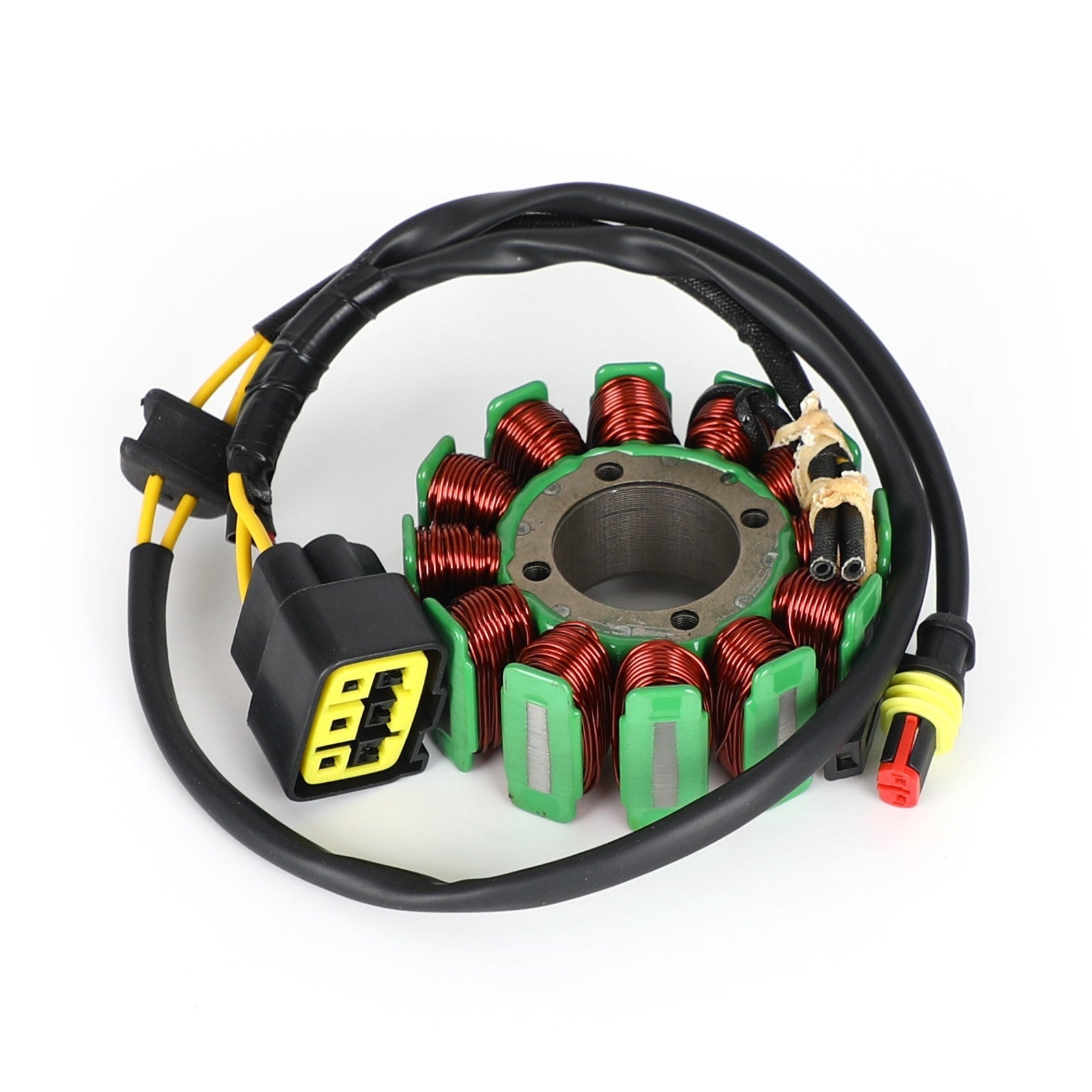

Stator Alternator Fit for TM Racing MX250 MX450 EN250 EN450 FI 4T 2011-2012
Couldn't load pickup availability
Magneto Generator Engine Stator Coil For KTM 350 400 500 540 600 620 640 660 LC4 87-00 Husaberg 350 400 501 600
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

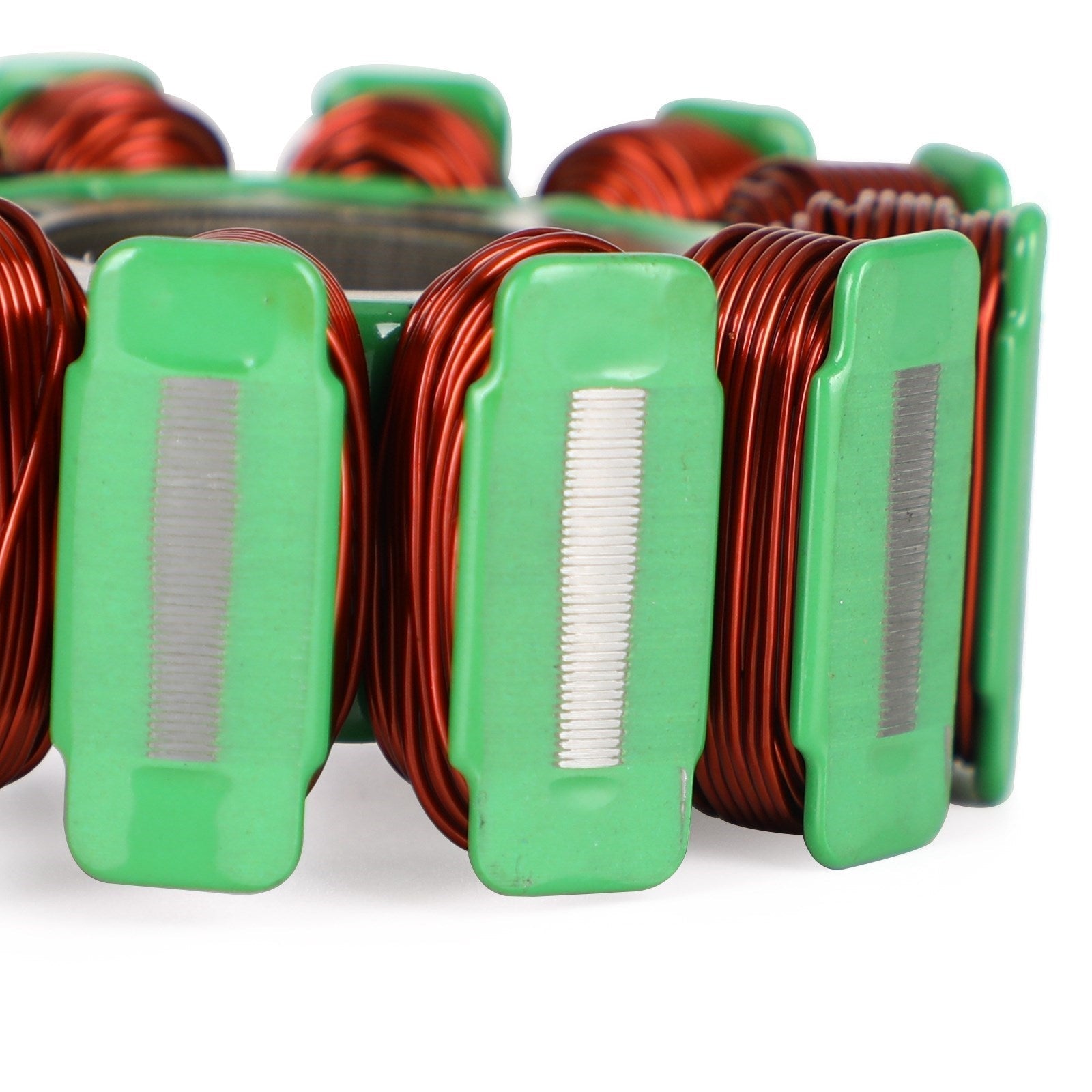

Highest grade copper windings, resistant to 200 degrees Celsius.

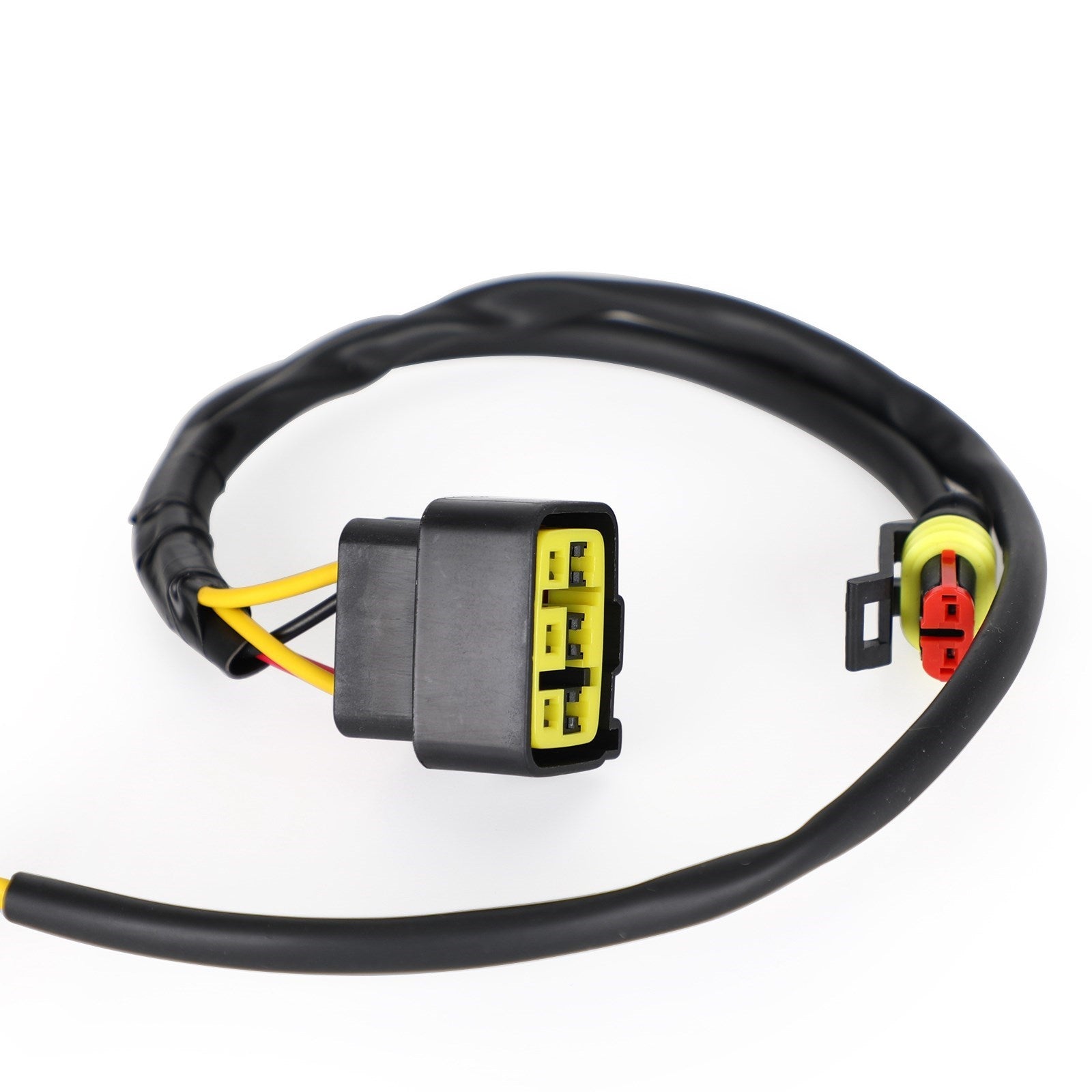

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
For Husaberg Replacement Part Number: RM01192-R00
For KTM Replacement Part Number: 58031002050
Dimensions :
Interior diameter : 28.2mm / 1.11"
Exterior diameter : 91.8mm / 3.61"
Pole's Thickness : 16.7mm / 0.65"
Pole's Width : 10.5mm / 0.41"
Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Number of poles: 18(+7)
Fitments:
For Husaberg 350E 1991-1994
For Husaberg 499C 1992-1993
For Husaberg 501C 1994
For Husaberg 501E 1990-1994
For Husaberg 600C 1992-1994
For Husaberg 600E 1993-1994
For Husaberg FC350 1996
For Husaberg FC400 1996-1999
For Husaberg FC499 1992-1993
For Husaberg FC501 1994-2000
For Husaberg FC600 1993-1996, 1998
For Husaberg FE350 1991-1996
For Husaberg FE350E 1996
For Husaberg FE400 1996-1998
For Husaberg FE400E 1996-1998
For Husaberg FE501 1989-1998
For Husaberg FE501E 1996-1998
For Husaberg FE600 1993-1996
For Husaberg FE600E 1996-1998
For Husaberg FS600E 1998
For Husaberg FX501E 1997-1998
For Husaberg FX600E 1997-1998
For KTM 350 LC4 1993-1995
For KTM 400 LC4 1993-2000
For KTM 500 LC4 1988-1992
For KTM 540 LC4 1998-1999
For KTM 600 LC4 1987-1995
For KTM 620 LC4 1994-1999
For KTM 640 1997
For KTM 660 LC4 1997
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
