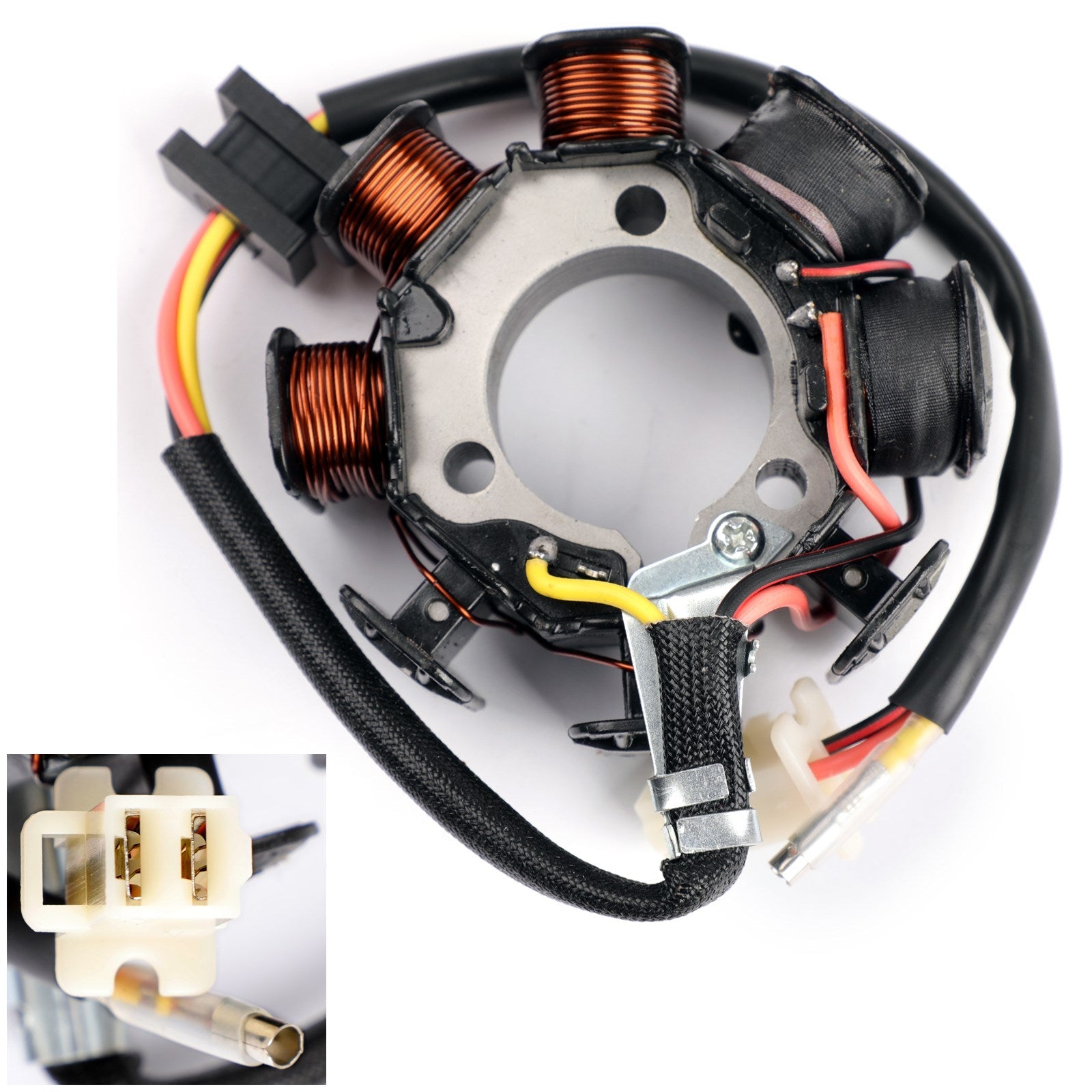

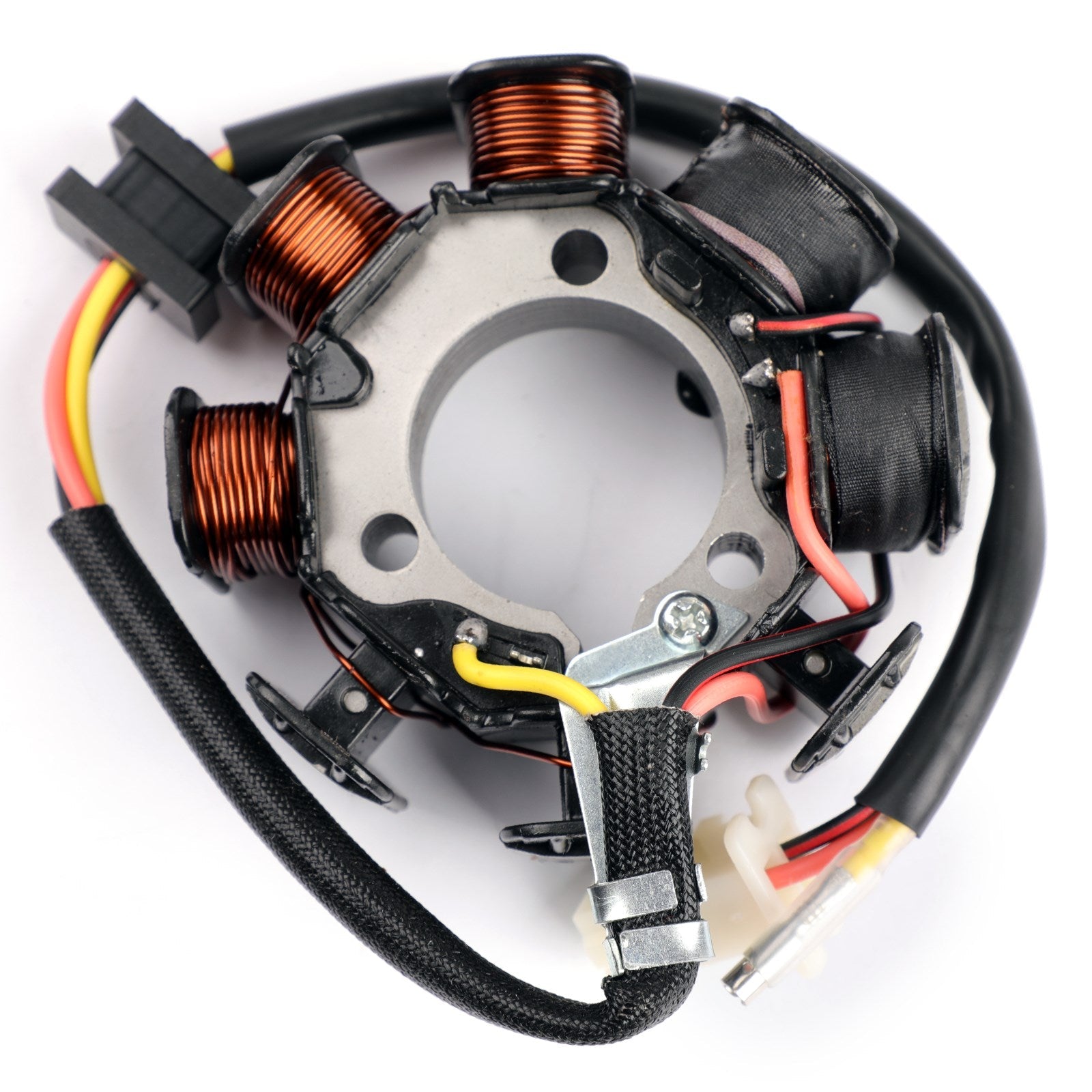

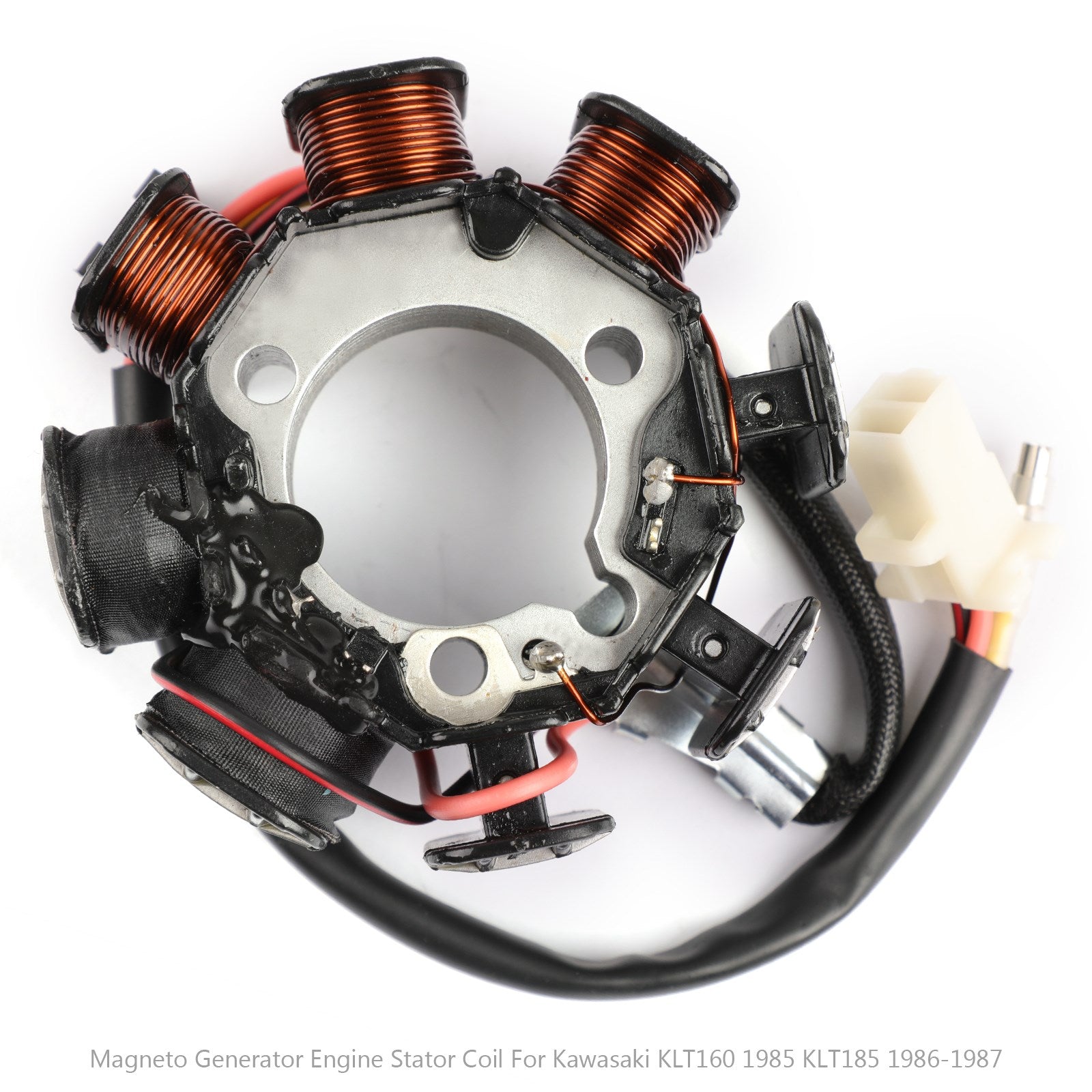

Magneto Generator Engine Stator Coil For Kawasaki KLT160 1985 KLT185 1986-1987

Magneto Generator Engine Stator Coil For Kawasaki KLT160 1985 KLT185 1986-1987

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:21003-1163,21003-1140,21003-1116

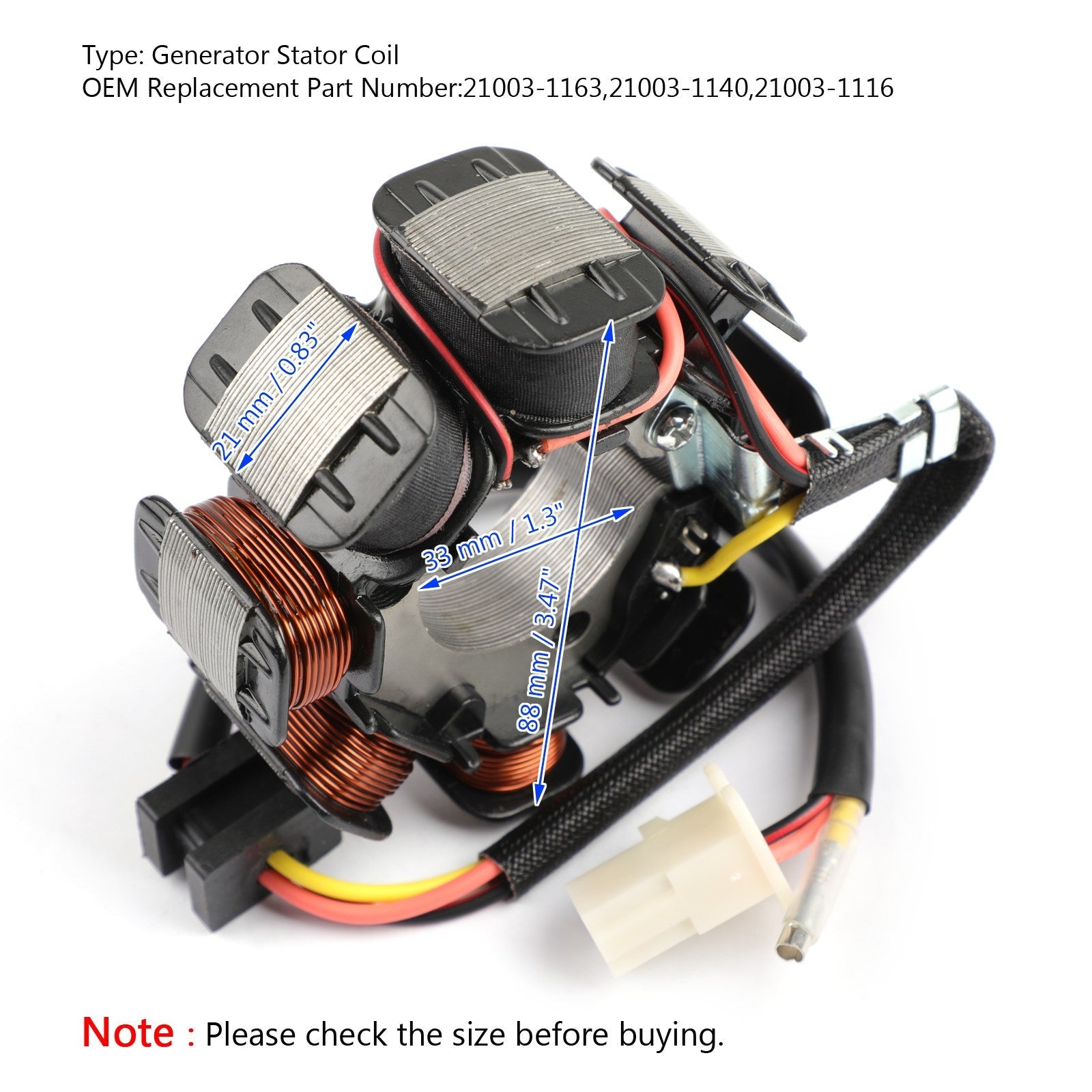

Dimensions :
Interior diameter : 33 mm / 1.3"
Exterior diameter : 88 mm / 3.47"
Thickness : 21 mm / 0.83"

Other Specifications :
Number of wires : 3

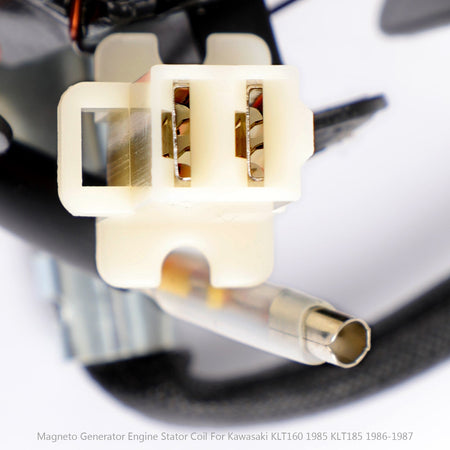

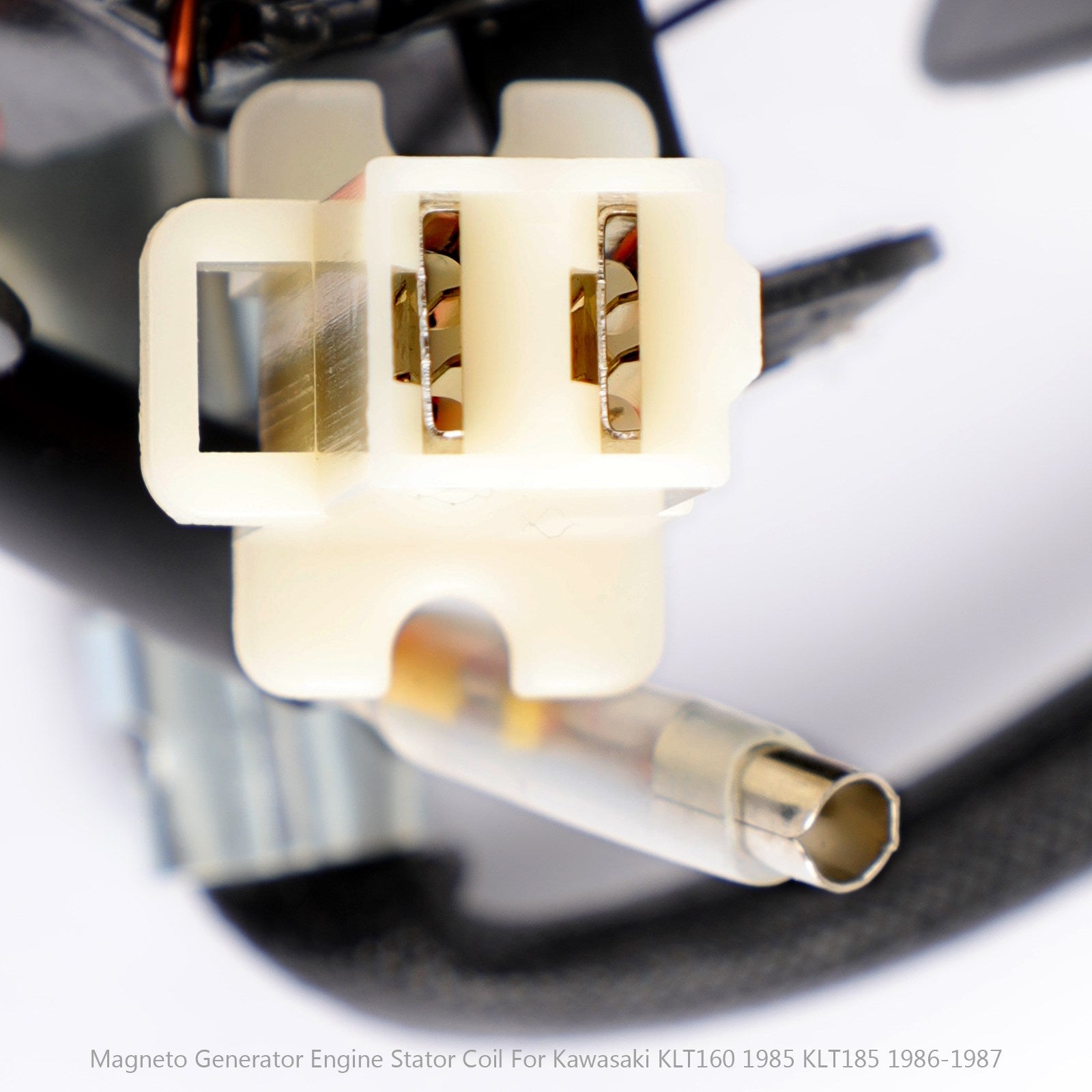

Number of pins : 3
Number of plugs : 2
Number of fixation holes: 3

Fitments:
Fits Kawasaki KLT160 1985
Fits Kawasaki KLT185 1986-1987

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
