Generator Stator For Suzuki VL800 Volusia/Boulevard C50 K5 Model 2001-2005

Magneto Generator Engine Stator Coil For Suzuki VL800 T C50 T VZ800 Boulevard M50 Volusia K5 2001-2017

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

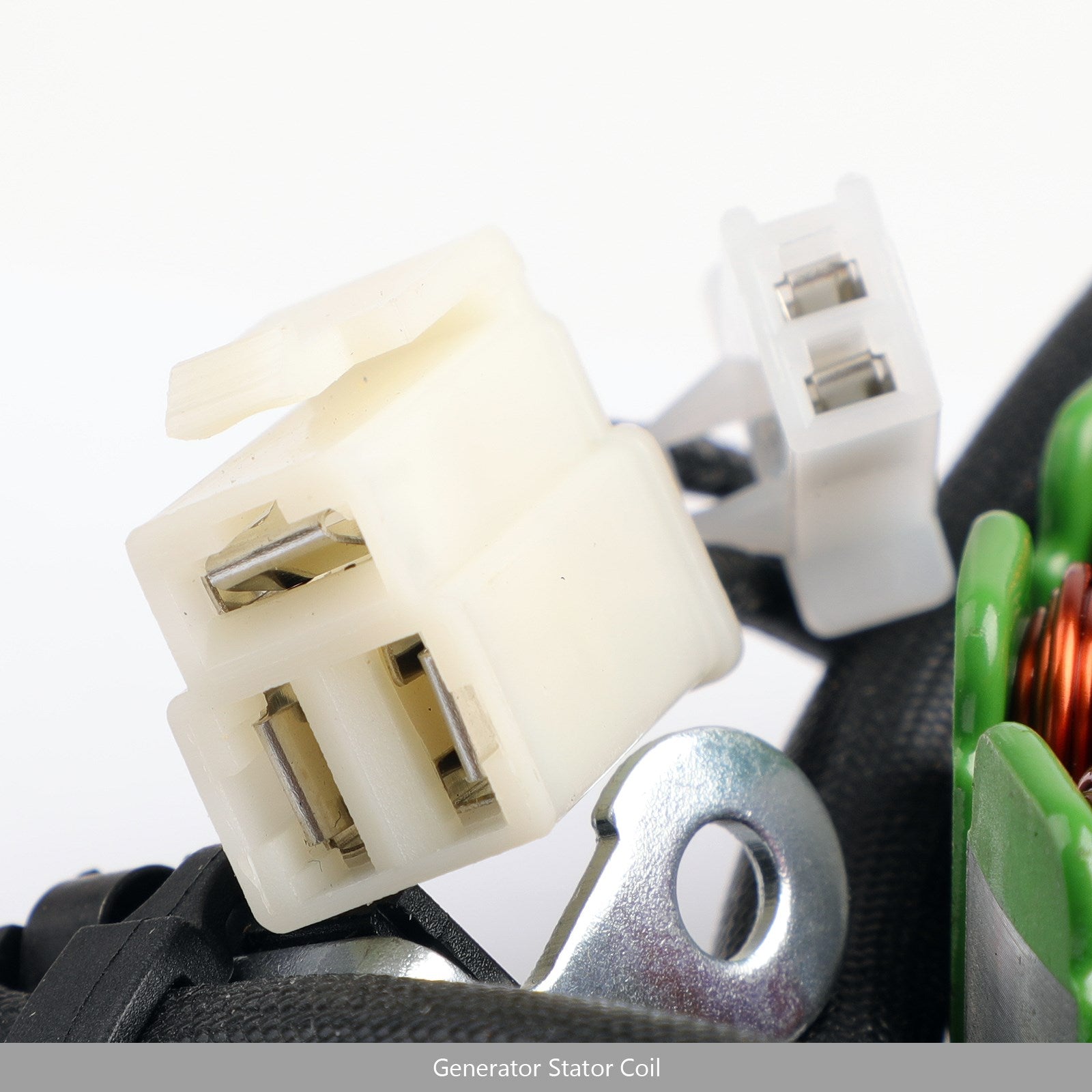

Connector included.
All products shipped are tested.

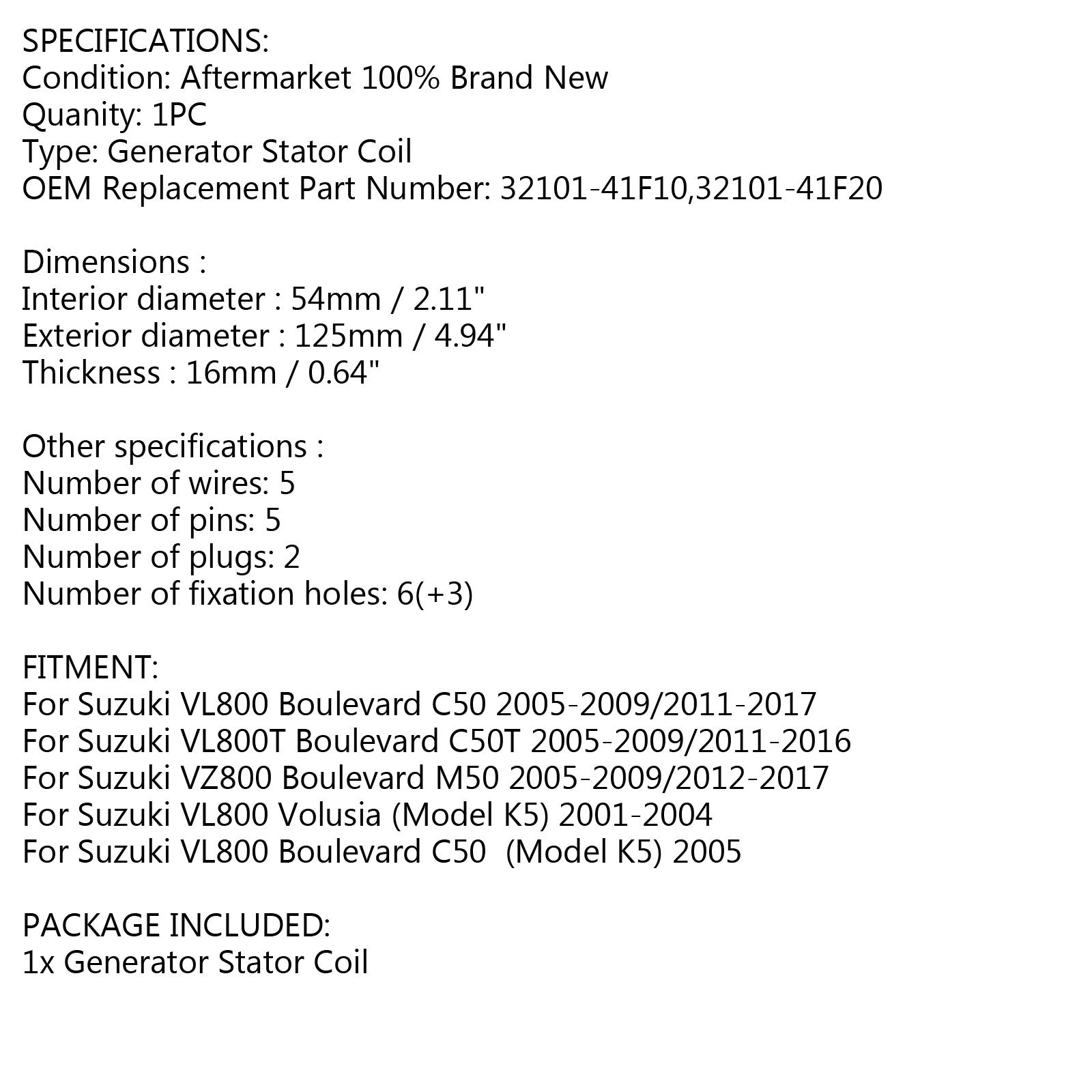

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

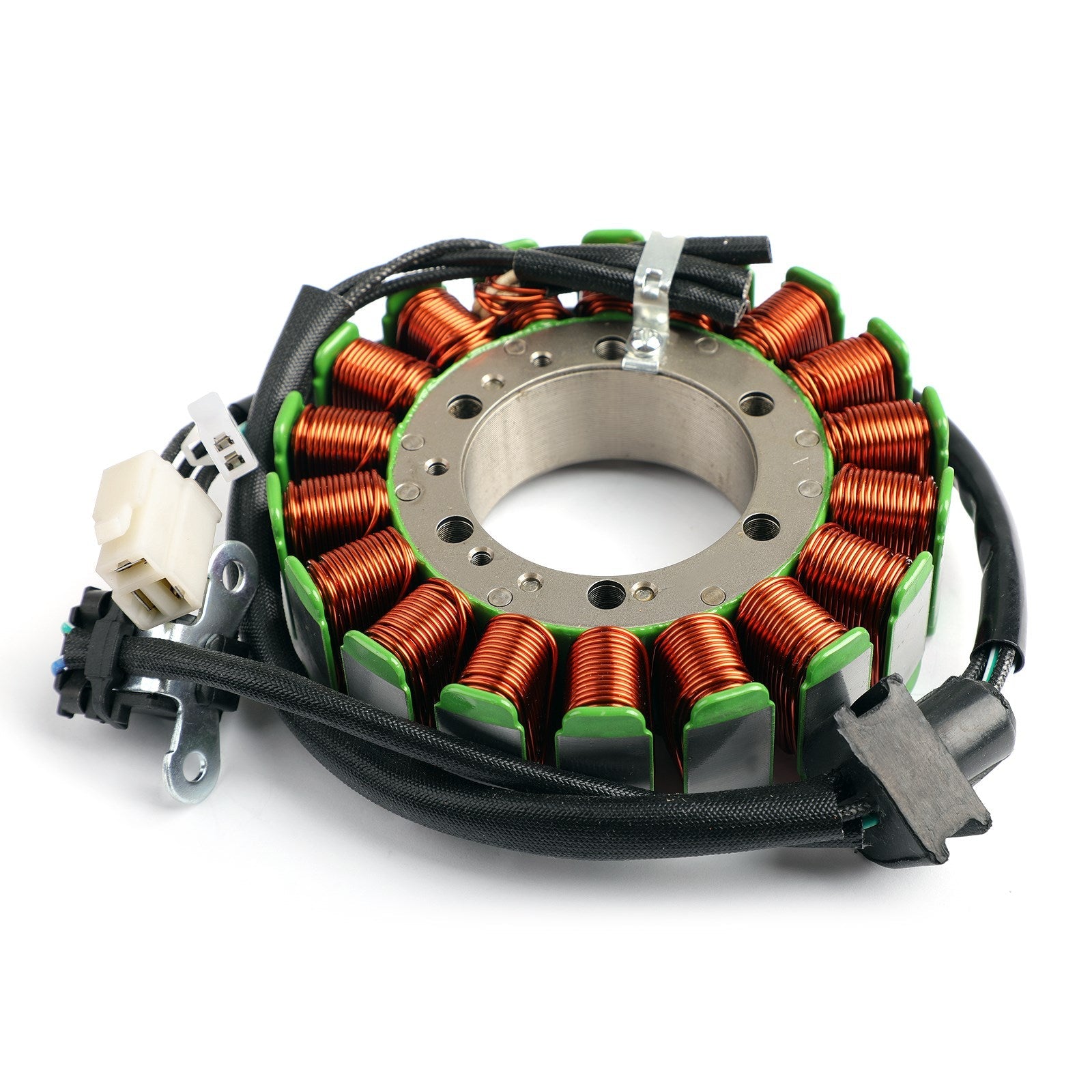

Type: Generator Stator Coil
OEM Replacement Part Number: 32101-41F10,32101-41F20

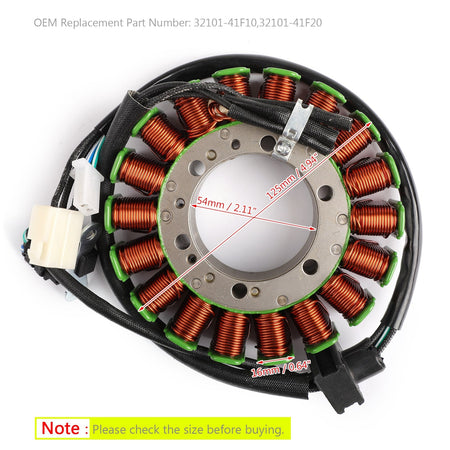

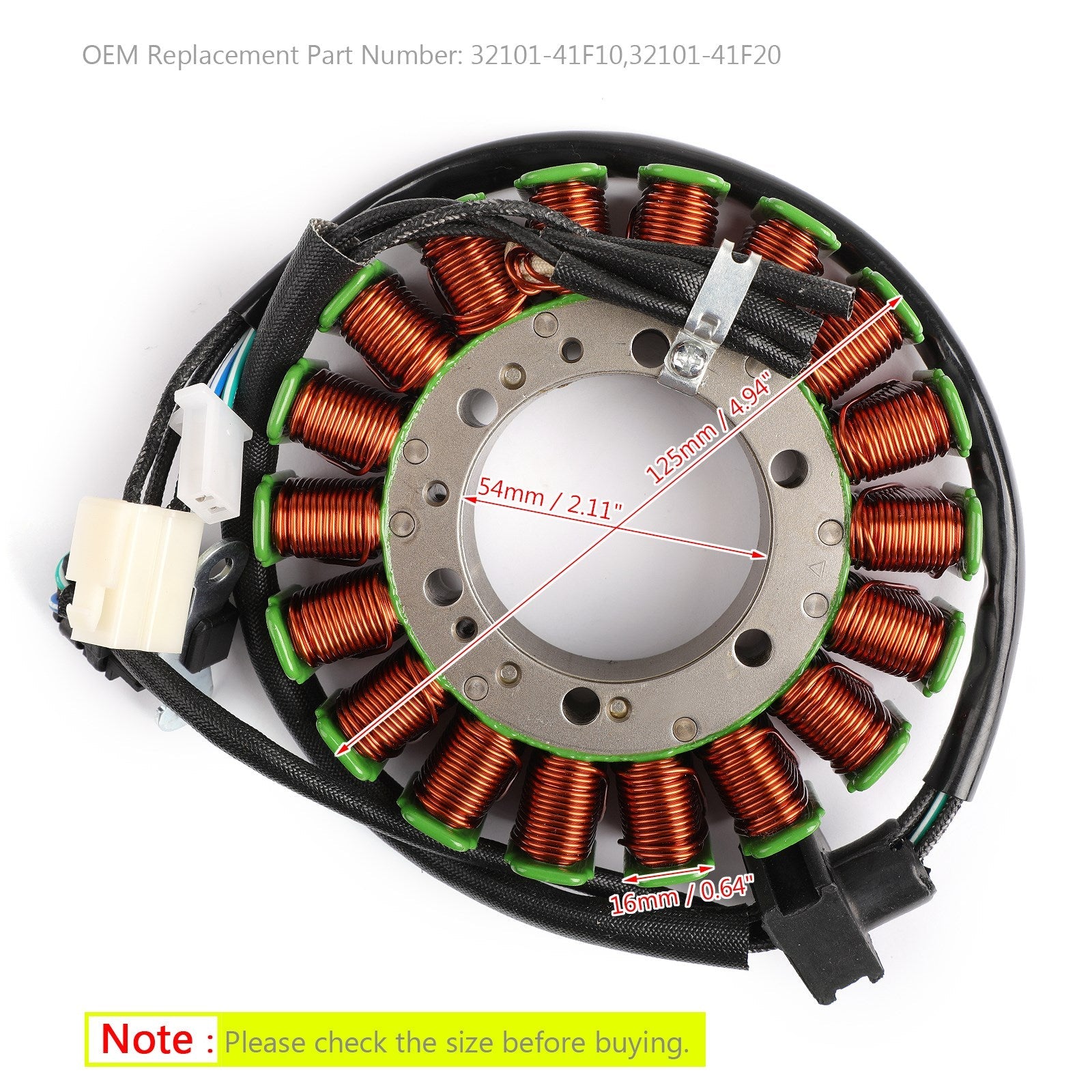

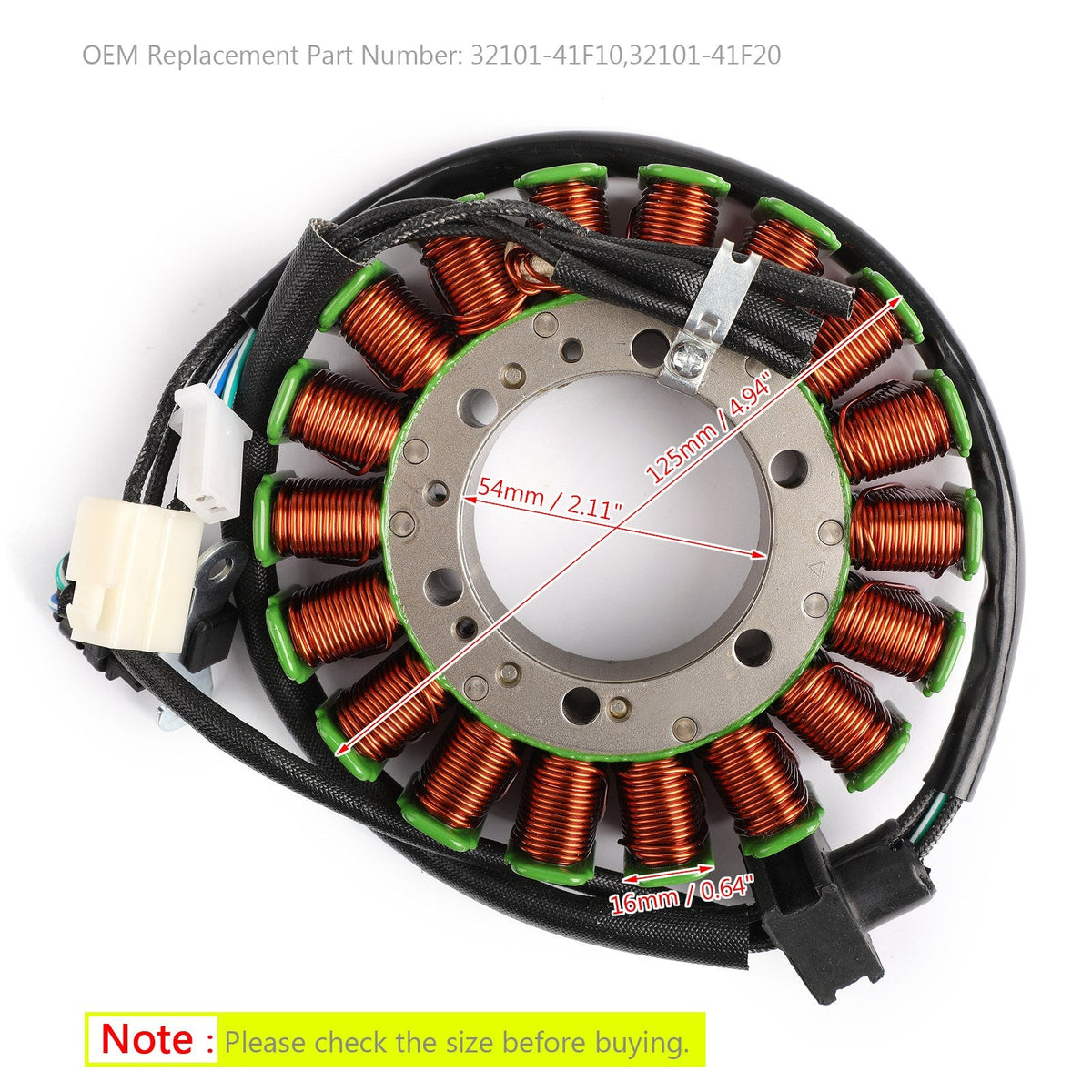

Dimensions :
Interior diameter : 54mm / 2.11"
Exterior diameter : 125mm / 4.94"
Thickness : 16mm / 0.64"

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 6(+3)

Fitments:
For Suzuki VL800 Boulevard C50 2005-2009/2011-2017
For Suzuki VL800T Boulevard C50T 2005-2009/2011-2016
For Suzuki VZ800 Boulevard M50 2005-2009/2012-2017
For Suzuki VL800 Volusia (Model K5) 2001-2004
For Suzuki VL800 Boulevard C50  (Model K5) 2005

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations`.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
