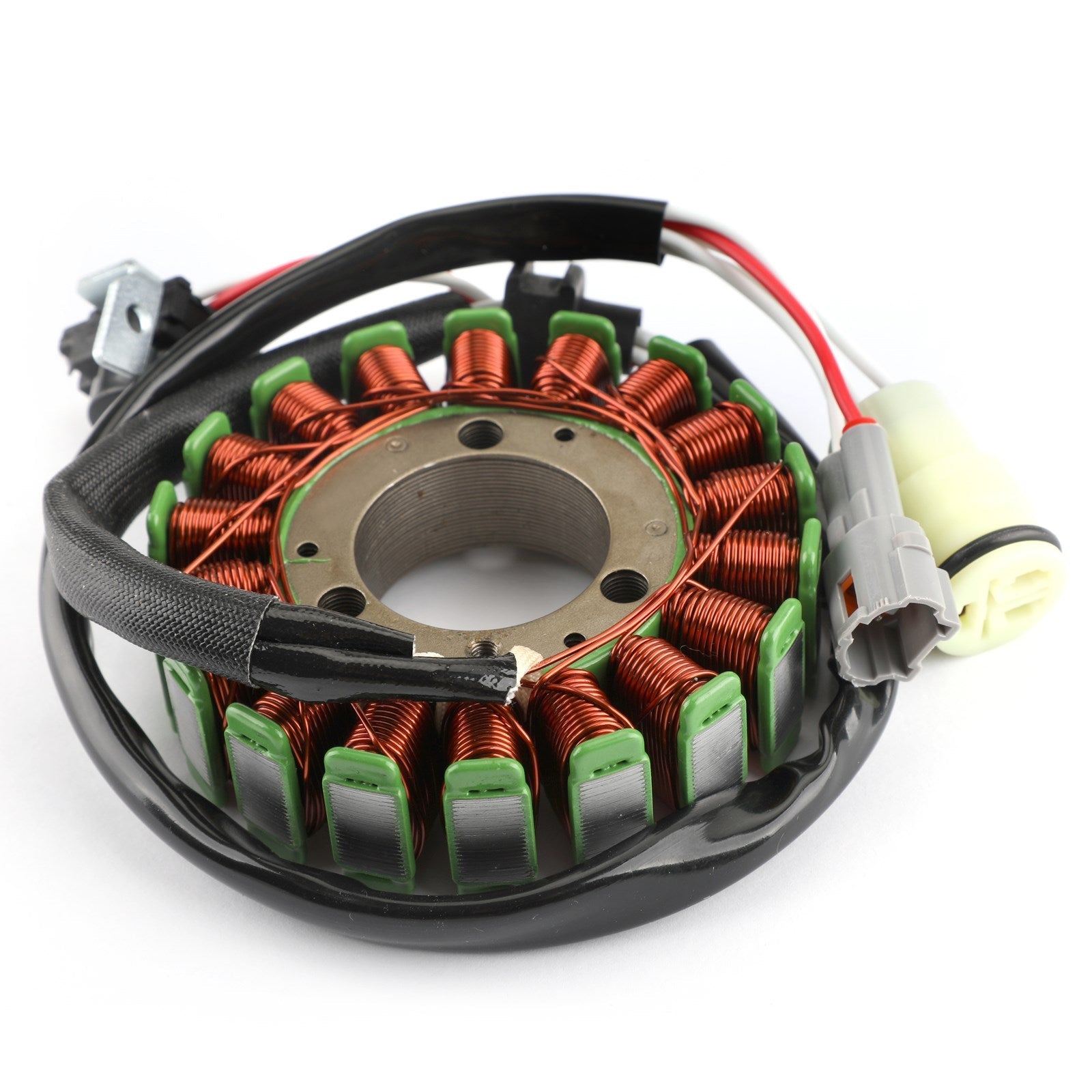

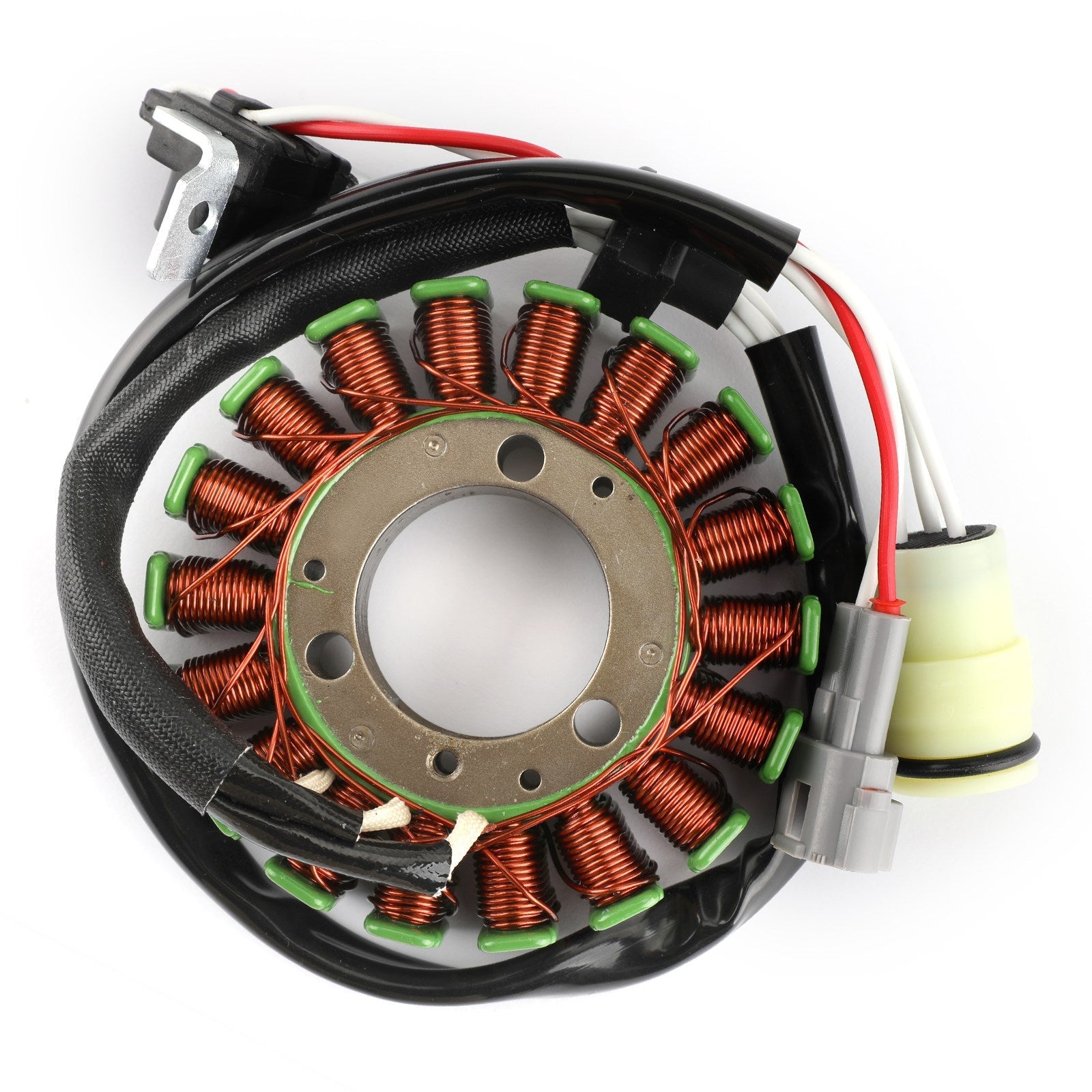

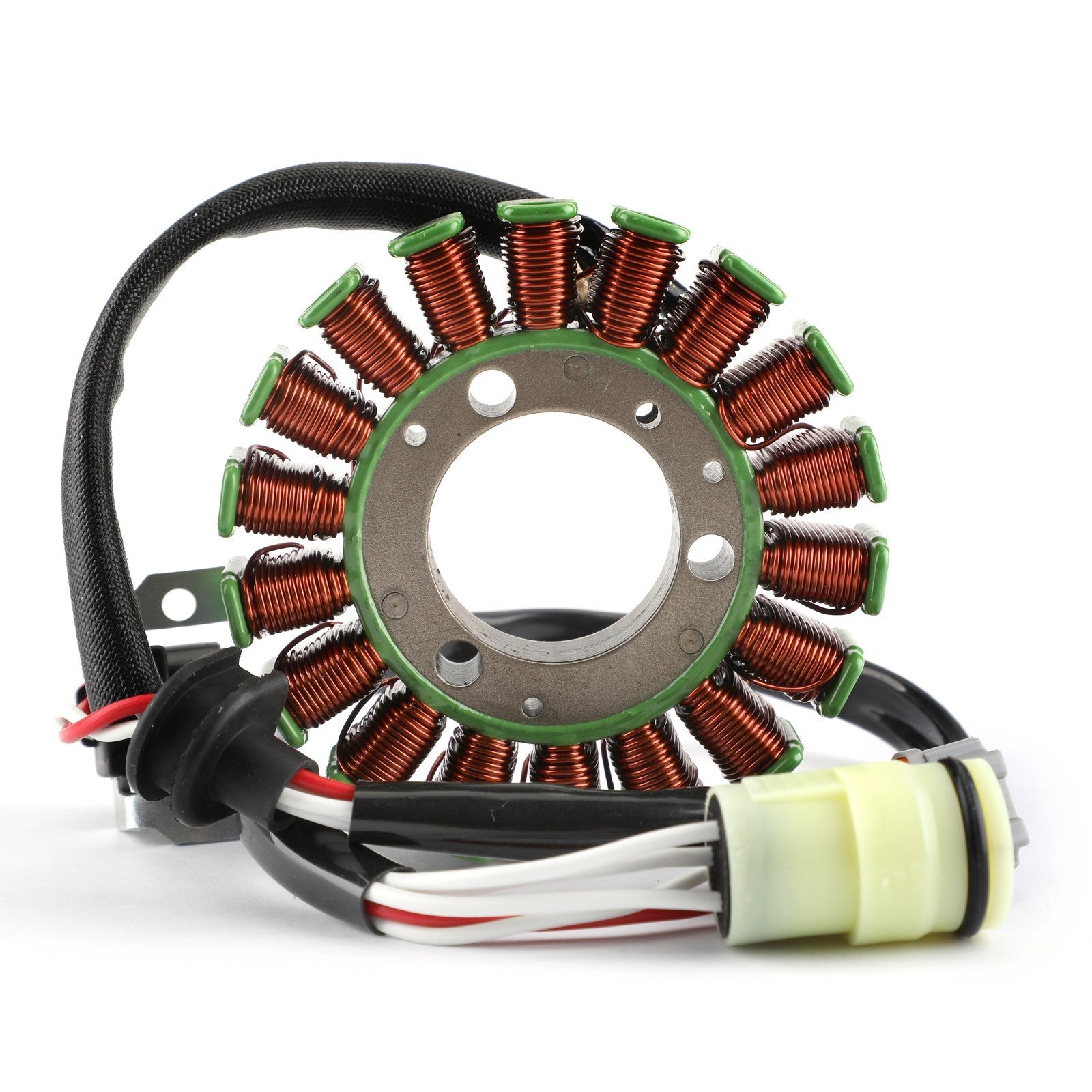

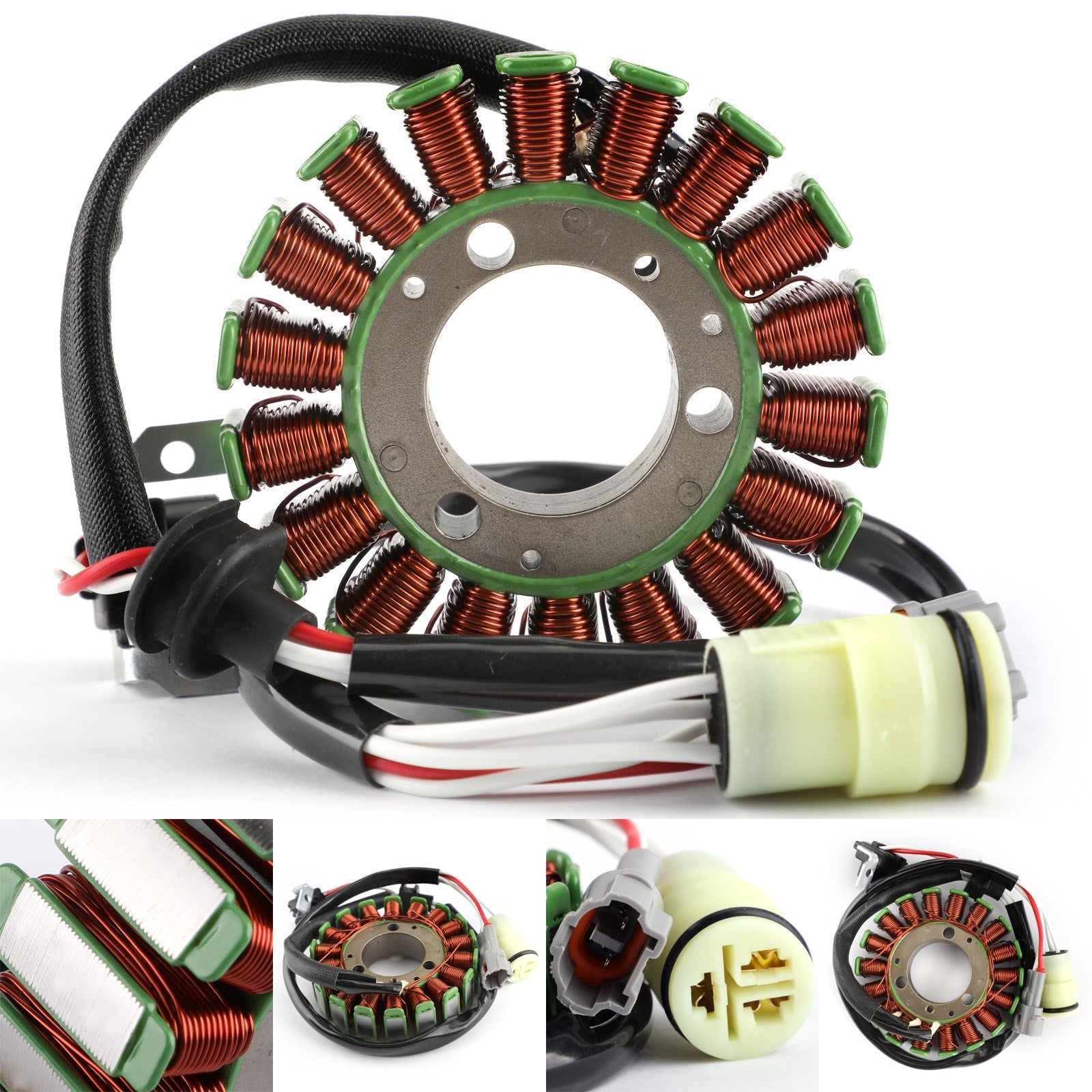

Alternator Stator Coil For Yamaha YFM 125 G GH Grizzly 125 YFM125 2004-2013

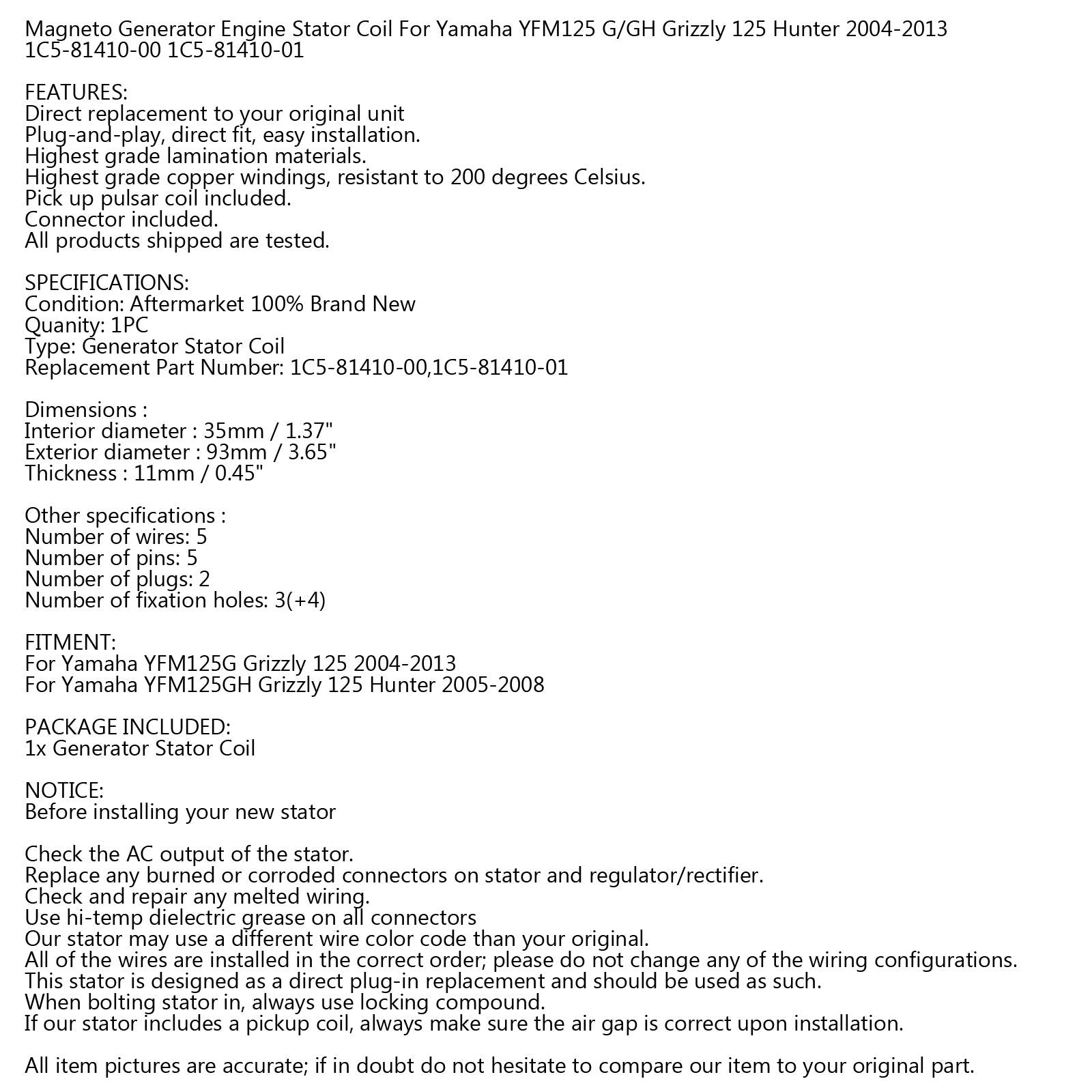

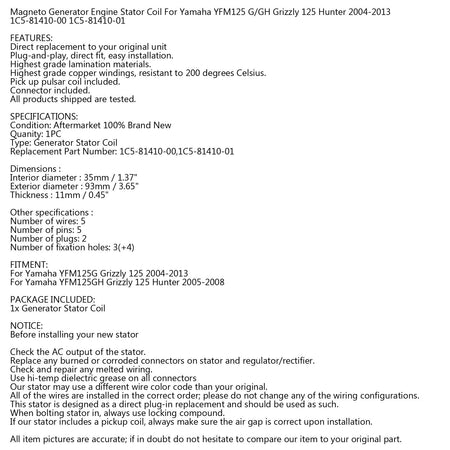

Magneto Generator Engine Stator Coil For Yamaha YFM125 G/GH Grizzly 125 Hunter 2004-2013 1C5-81410-00 1C5-81410-01

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

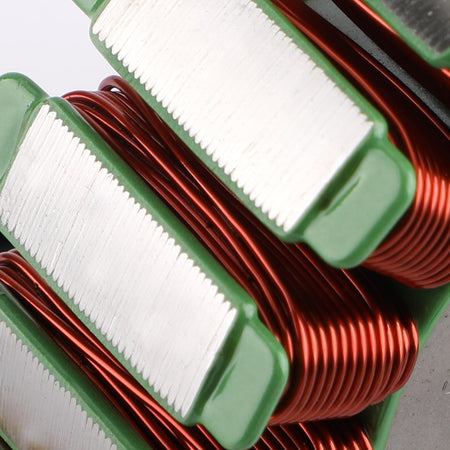

Highest grade lamination materials.

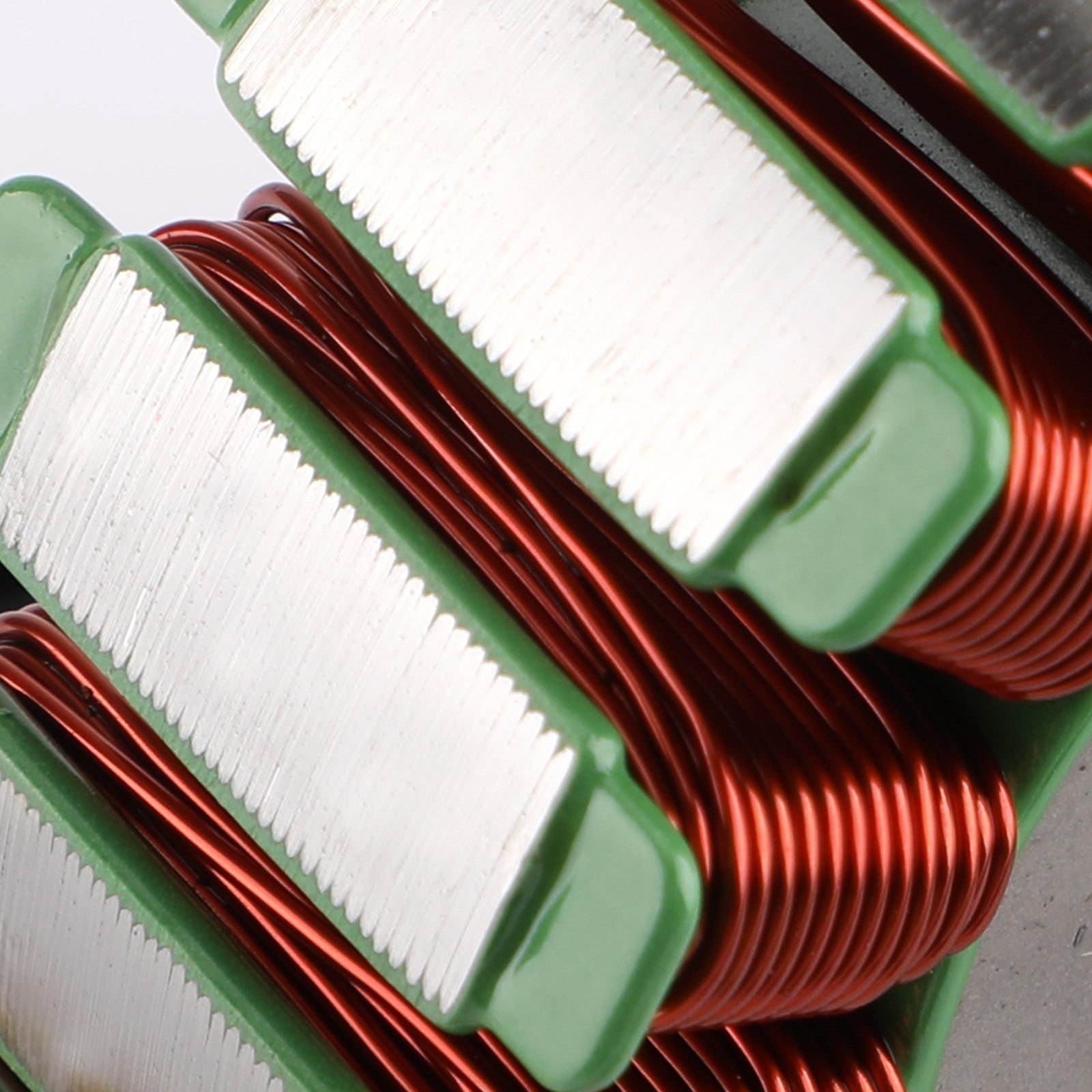

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

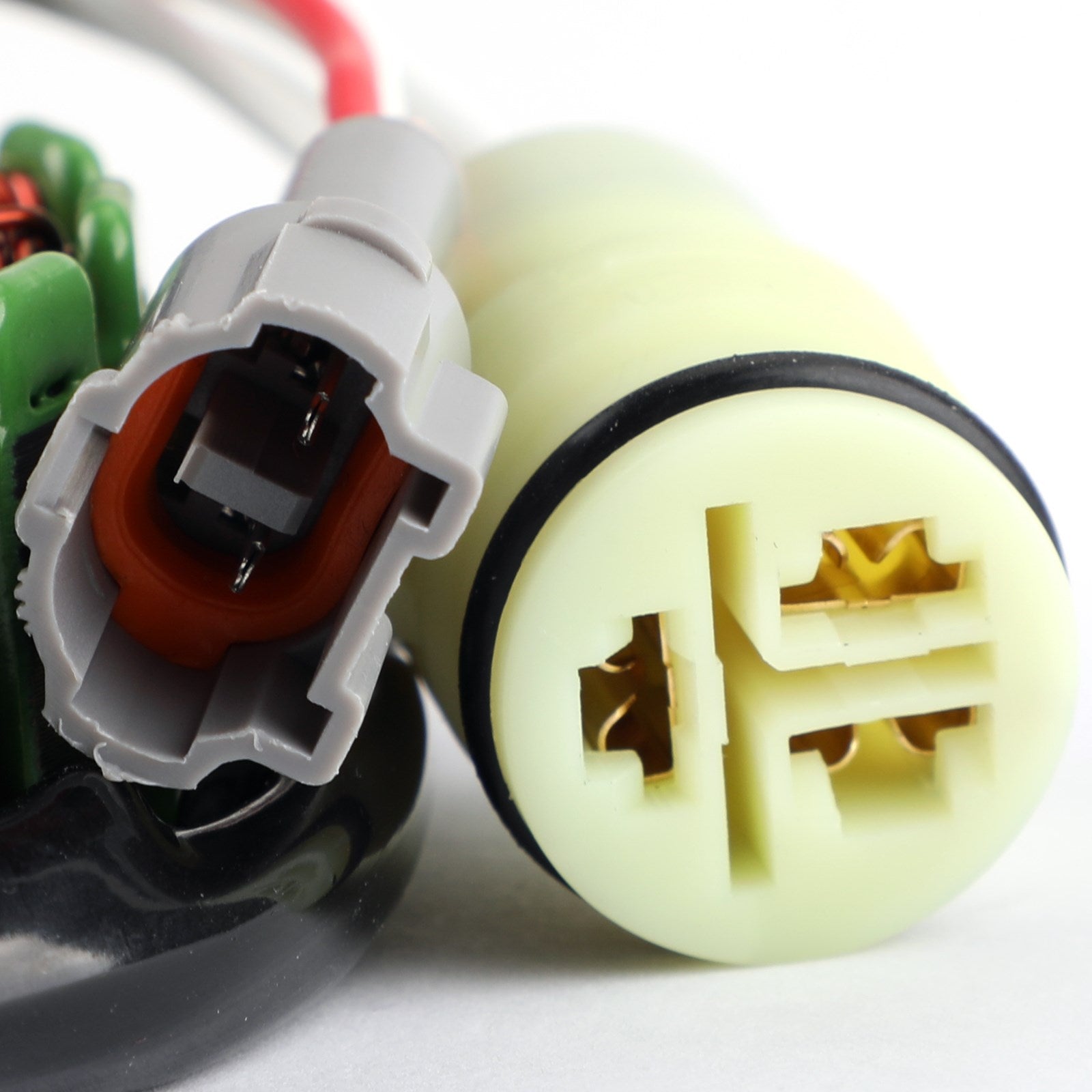

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 1C5-81410-00,1C5-81410-01

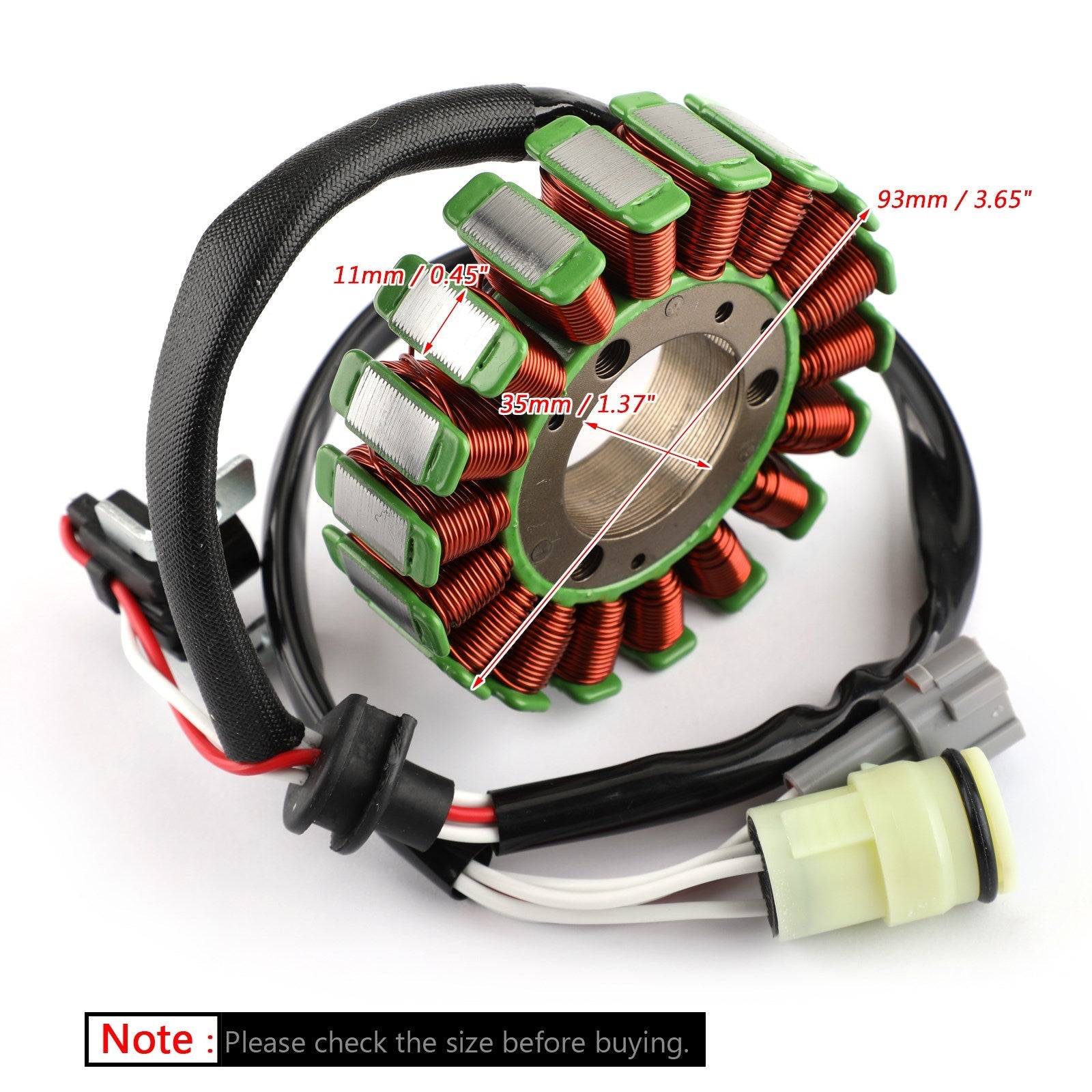

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 93mm / 3.65"
Thickness : 11mm / 0.45"

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+4)

Fitments:
For Yamaha YFM125G Grizzly 125 2004-2013
For Yamaha YFM125GH Grizzly 125 Hunter 2005-2008

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
