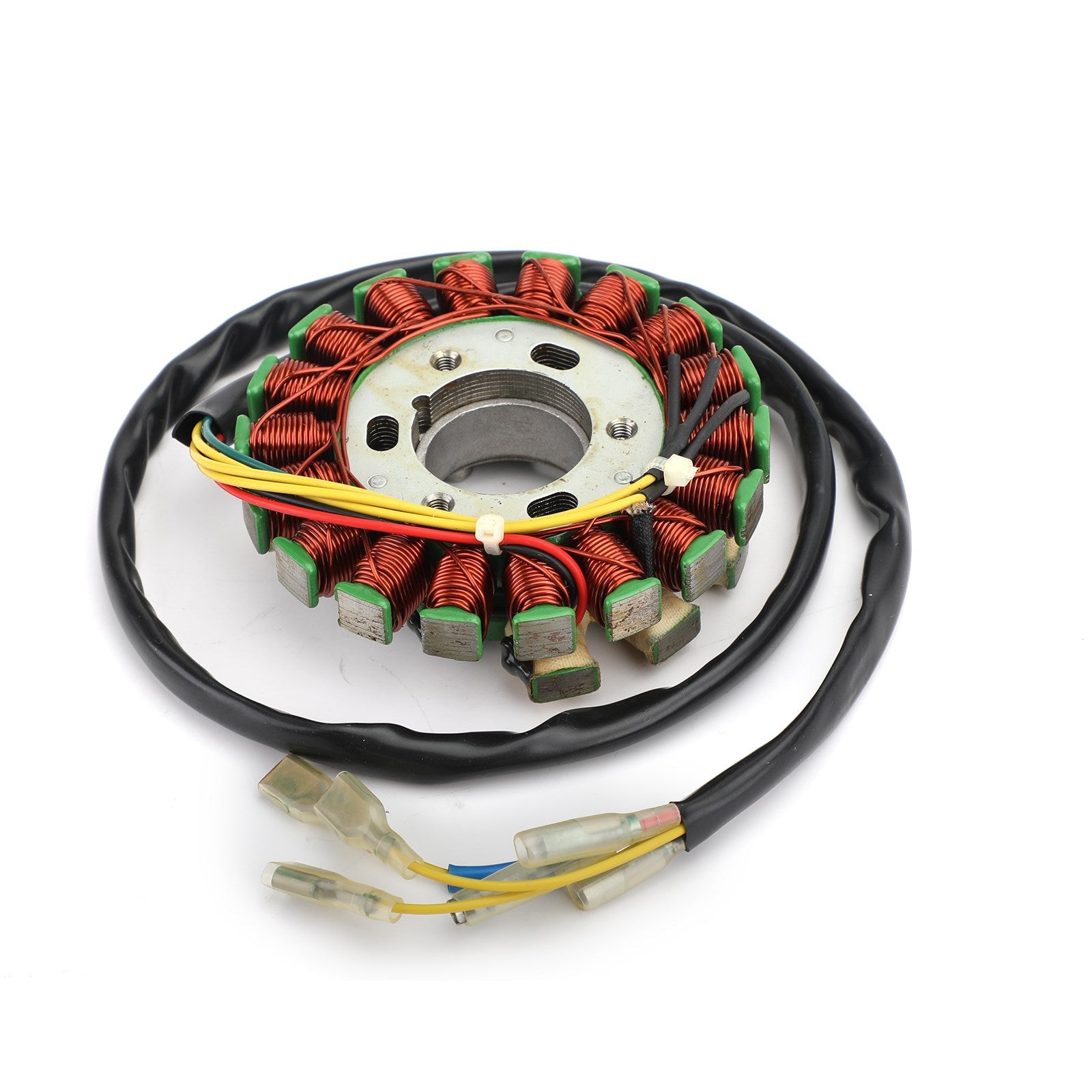

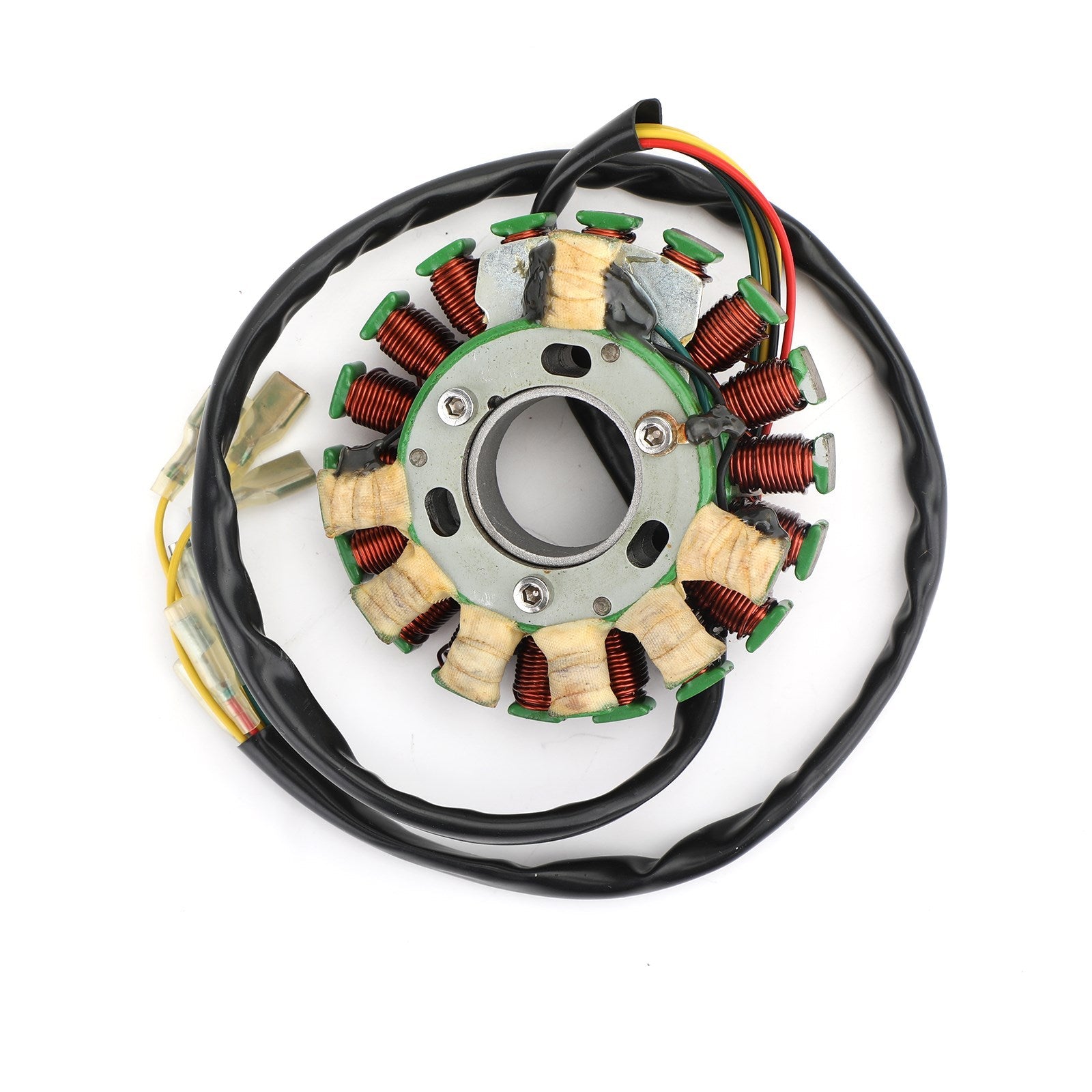

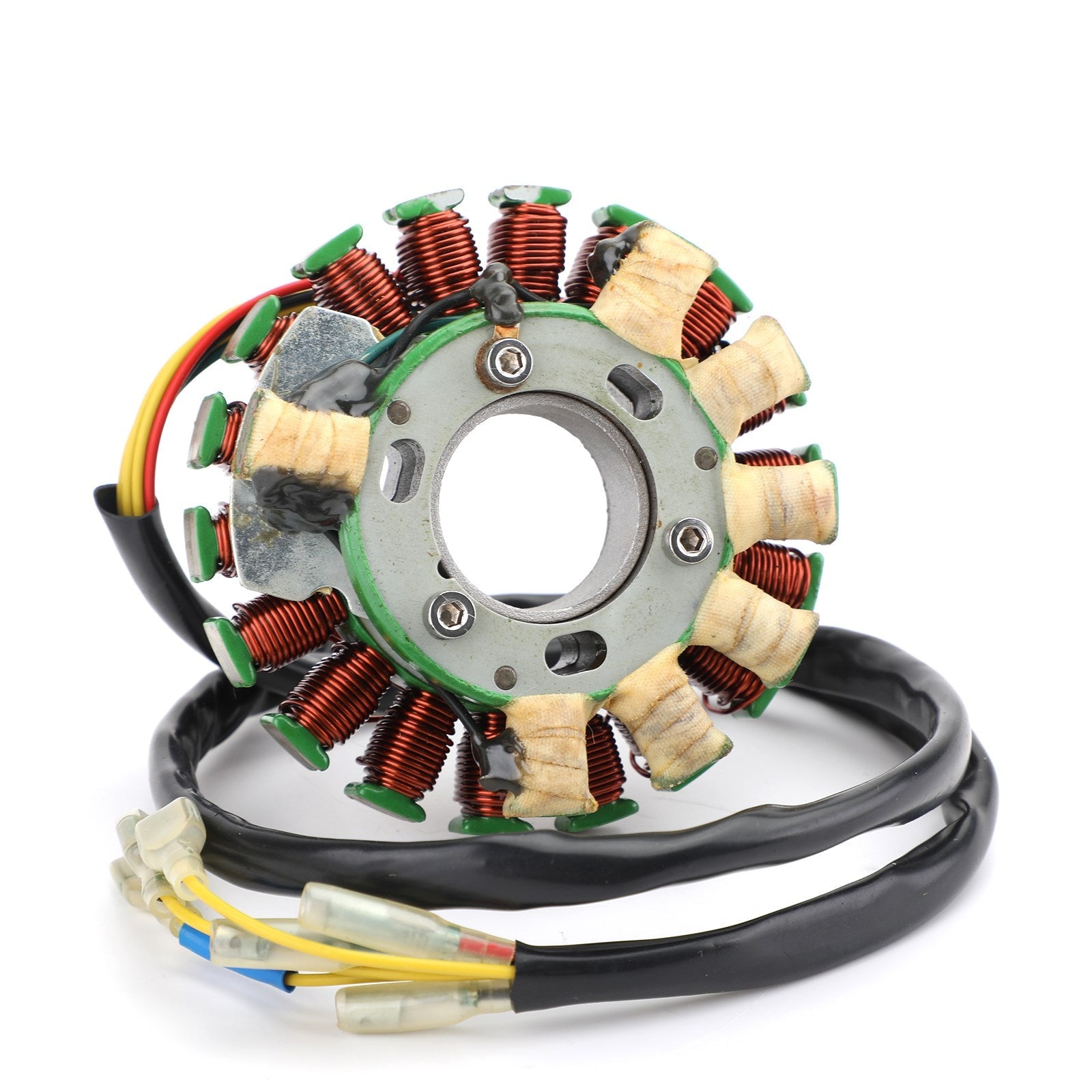

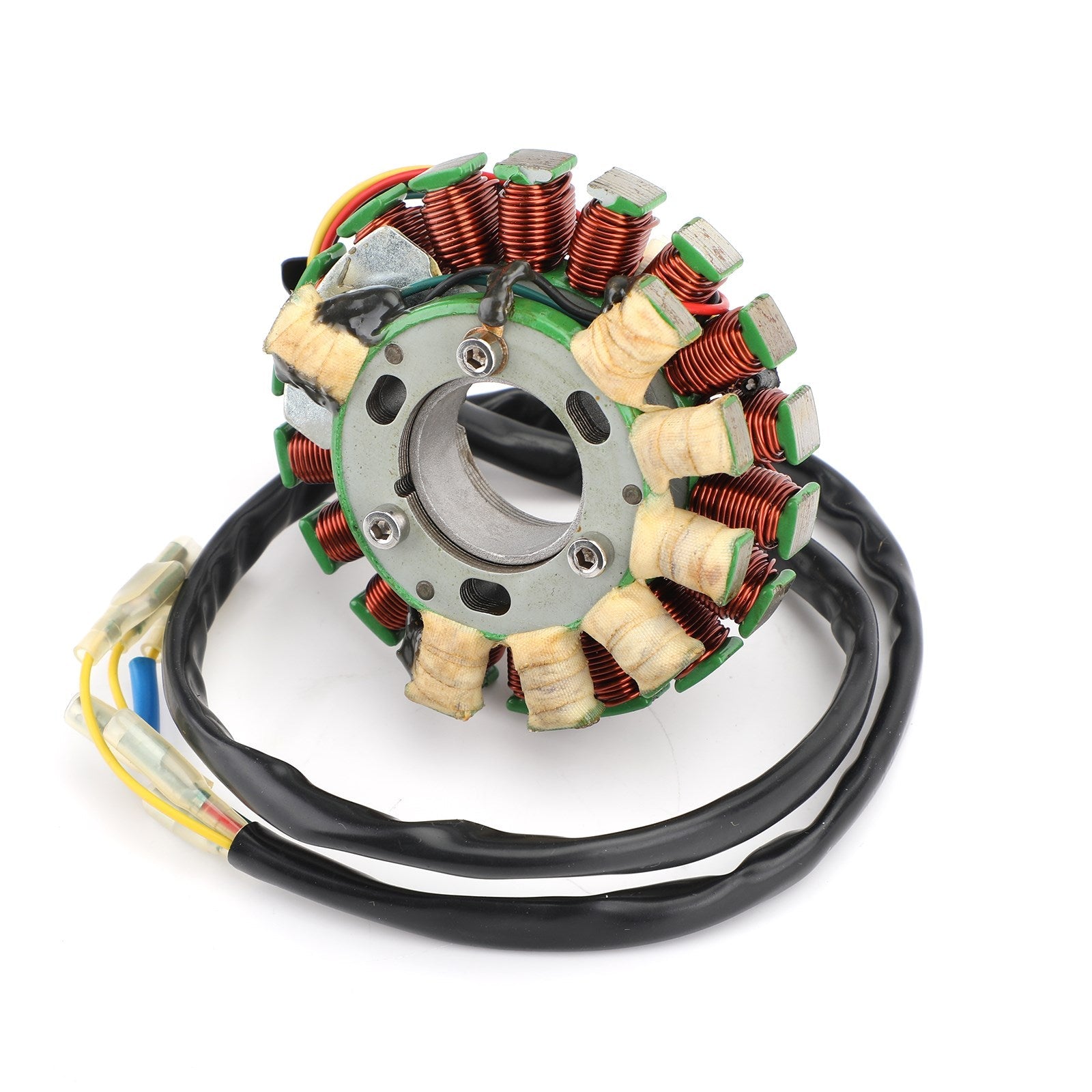

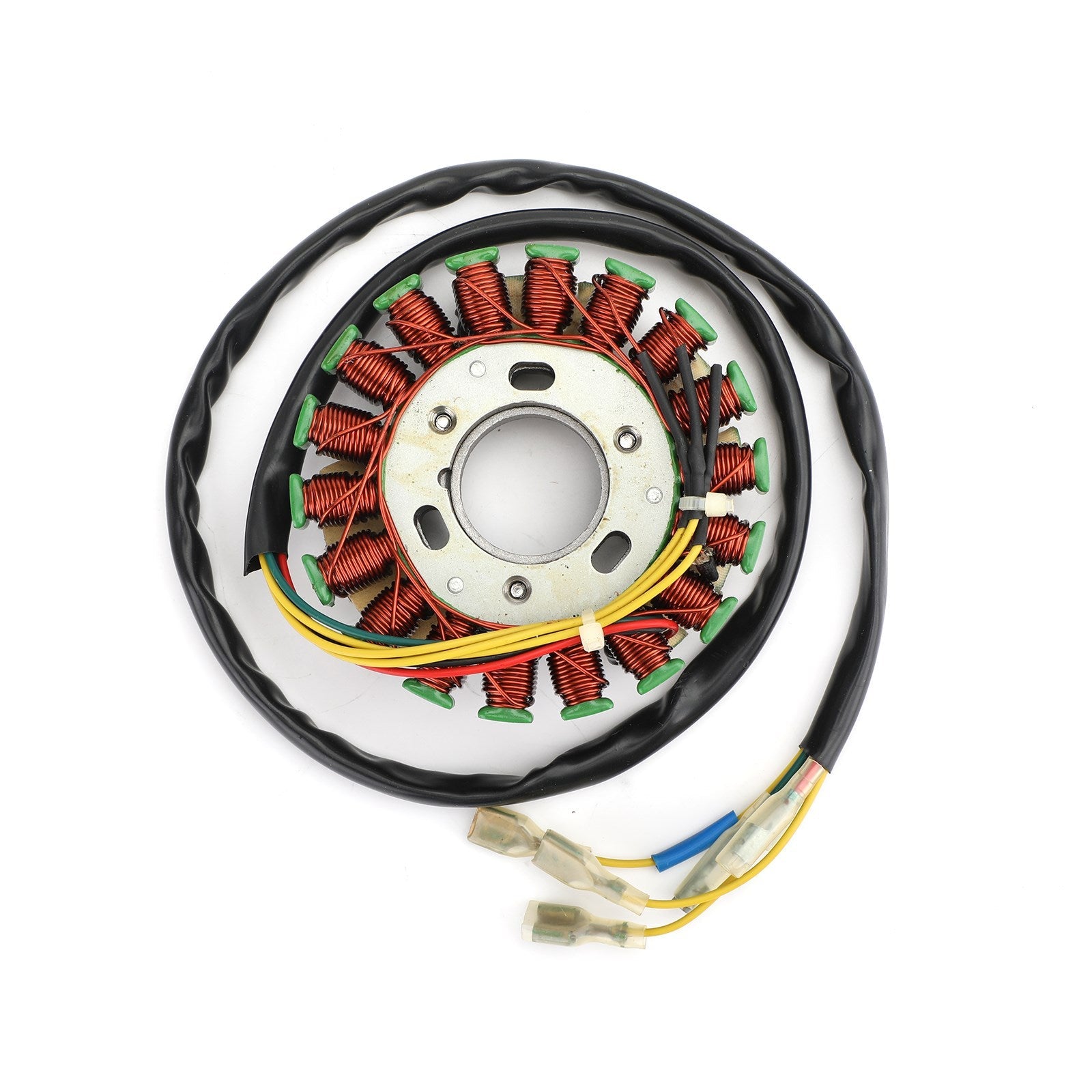

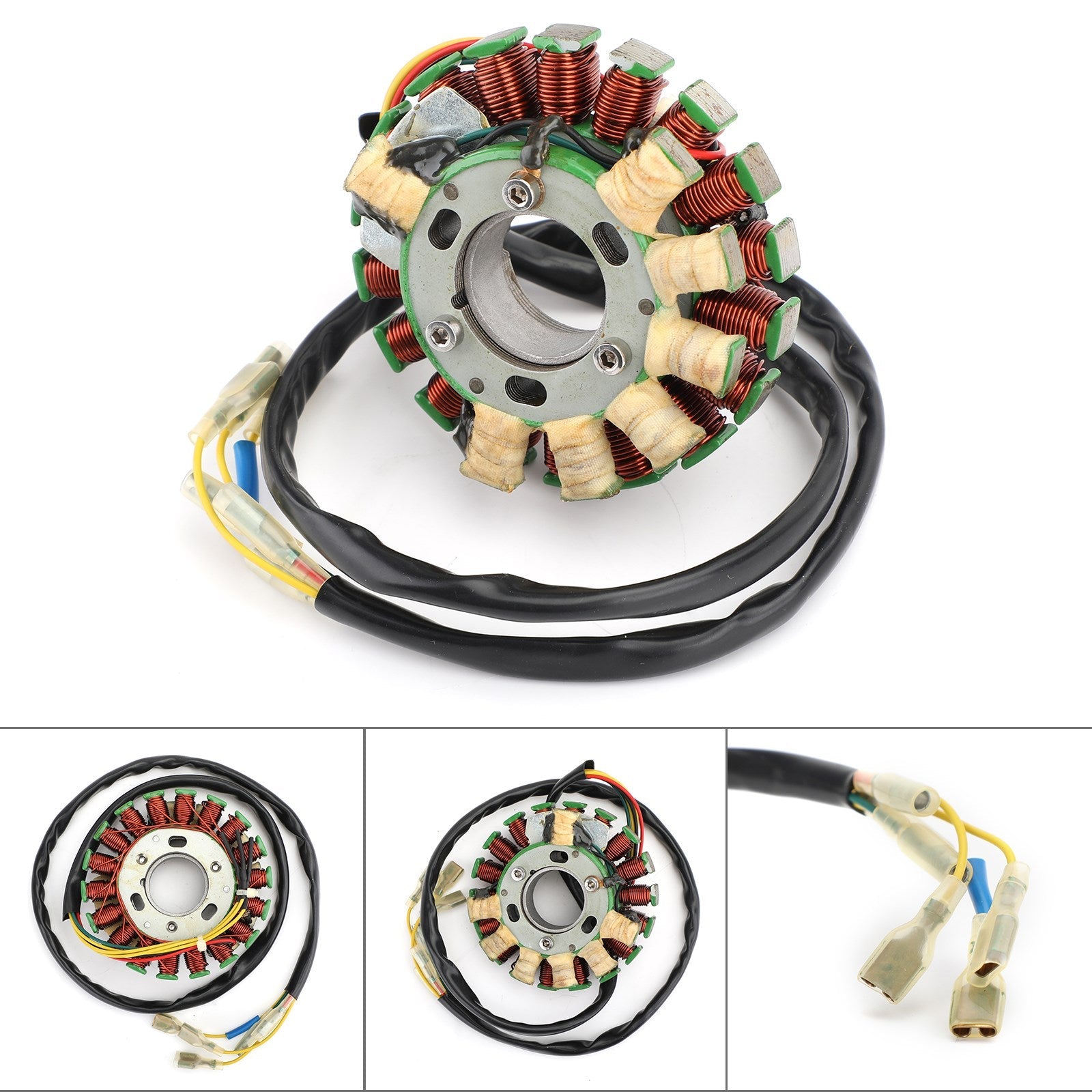

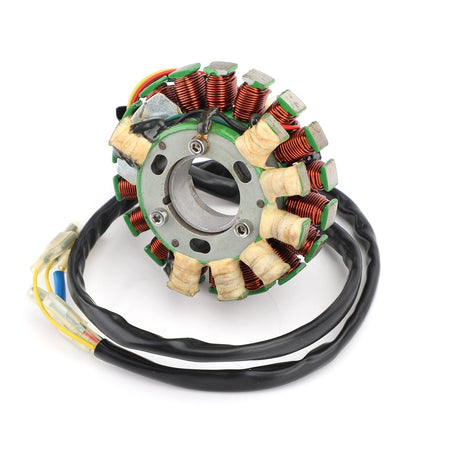

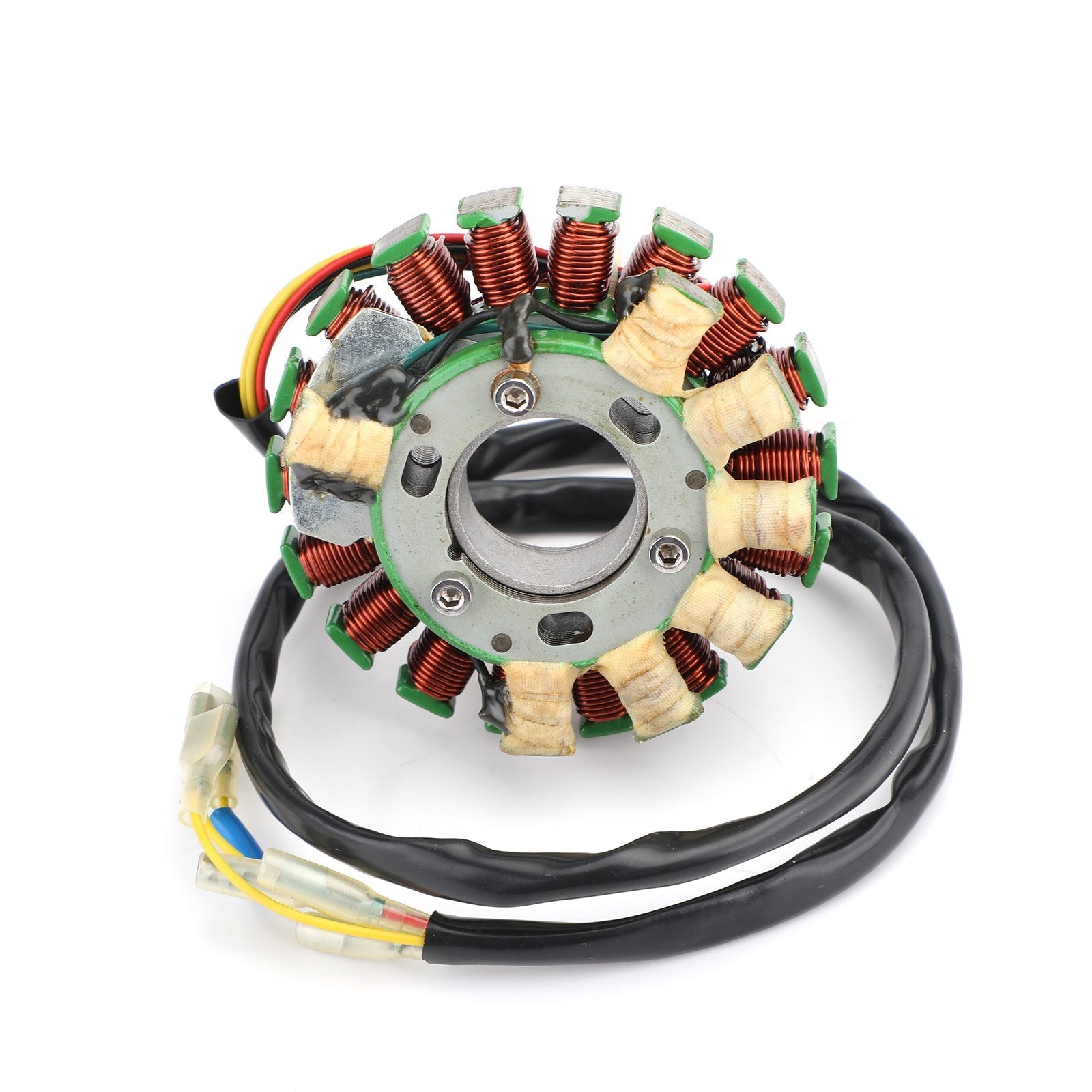

Alternator Stator Coil For Husaberg FC FE FS FX 400 470 501 550 600 650 99-03

Magneto Generator Engine Stator Coil For Husaberg FC470/E FC550 FC600 FE400/E FE501/E FE600/E FX470E FX501E FX600E FX650E

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

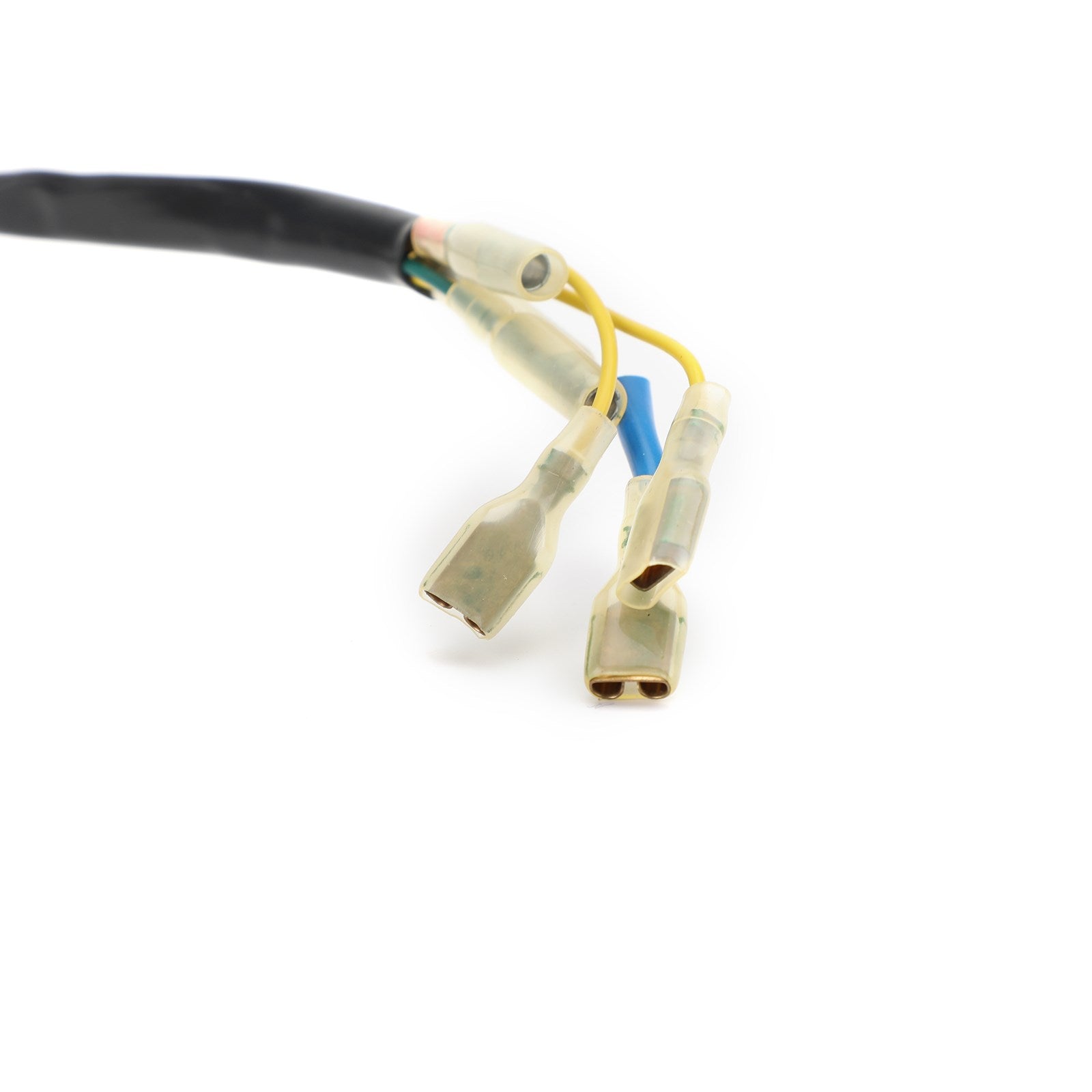

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:RM01193-R00

Dimensions :
Interior diameter : 28mm / 1.09"
Exterior diameter : 92mm / 3.61"
Thickness : 10mm / 0.41"

Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Fixation holes length: 32mm / 1.28"

Fitments:
For Husaberg FC470 2001-2002
For Husaberg FC470E 2002
For Husaberg FC550 2001-2002
For Husaberg FC600 1999-2000
For Husaberg FE400 1999-2000
For Husaberg FE400E 1999-2003
For Husaberg FE501 1999-2000
For Husaberg FE501E 1999-2003
For Husaberg FE600 2000
For Husaberg FE600E 1999-2000
For Husaberg FE650E 2001-2003
For Husaberg FS400E 2003
For Husaberg FS600E 1999
For Husaberg FS650E 2002-2003
For Husaberg FX470E 2001-2002
For Husaberg FX501E 1999
For Husaberg FX600E 1999-2000
For Husaberg FX650E 2001-2003
For Husqvarna Many Models

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
