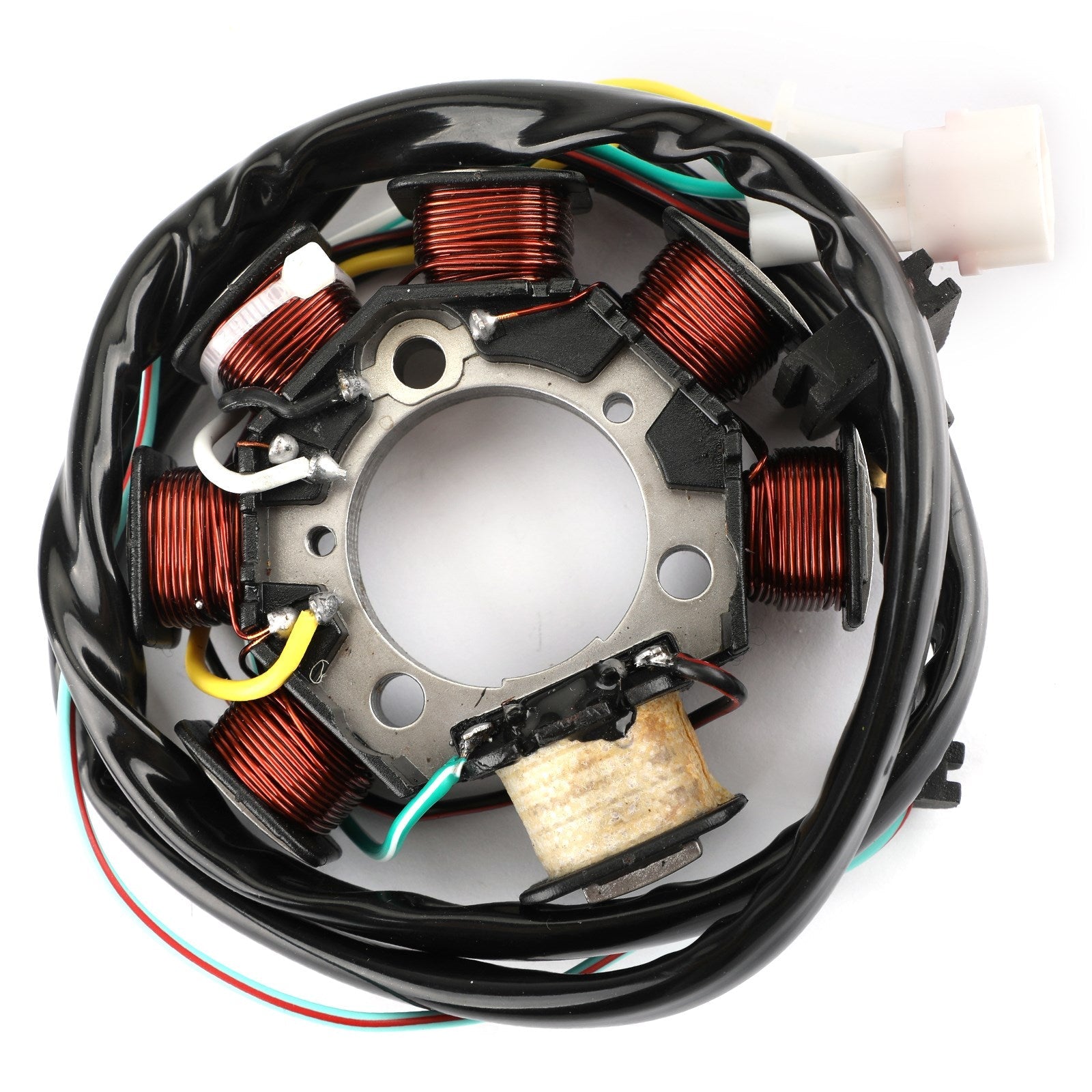

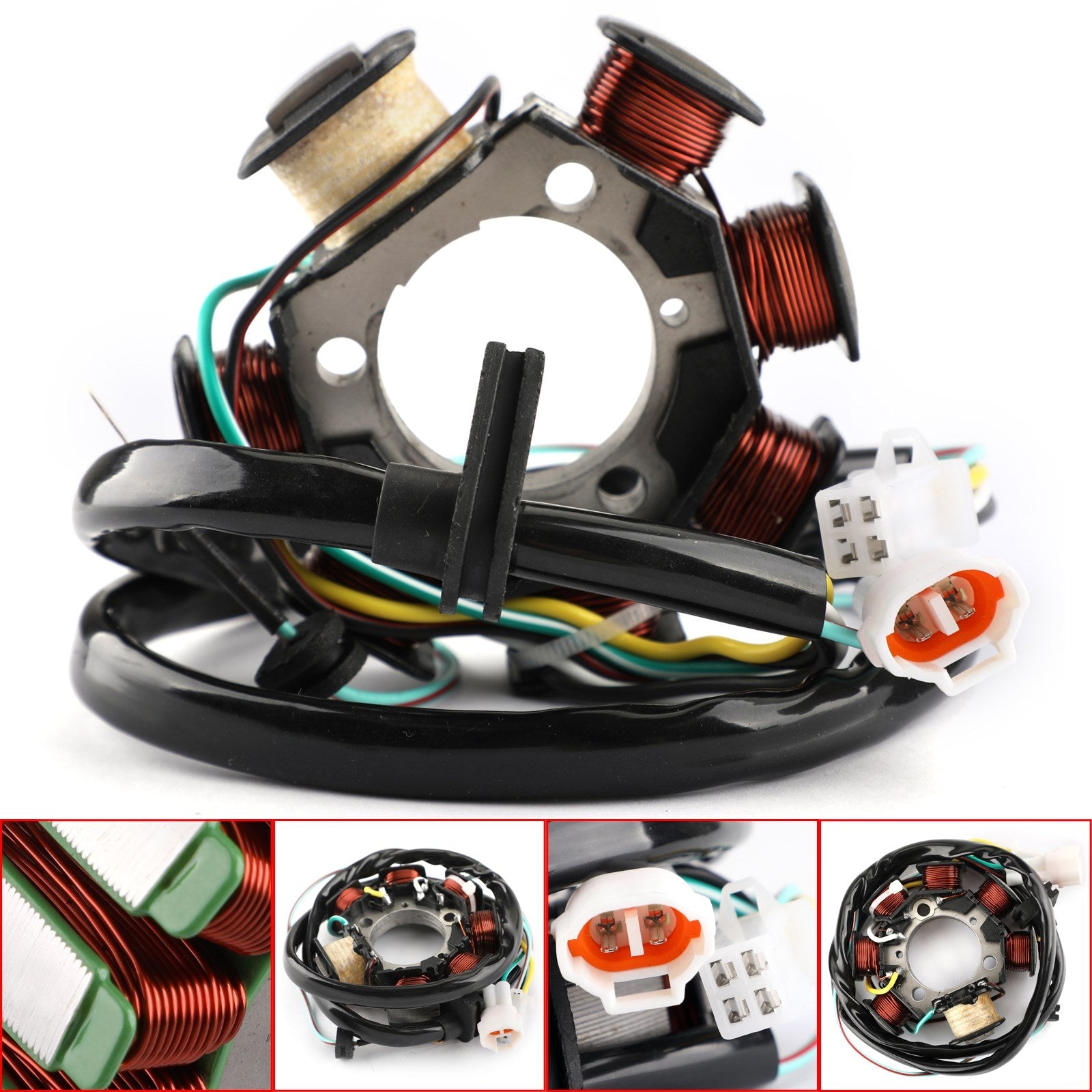

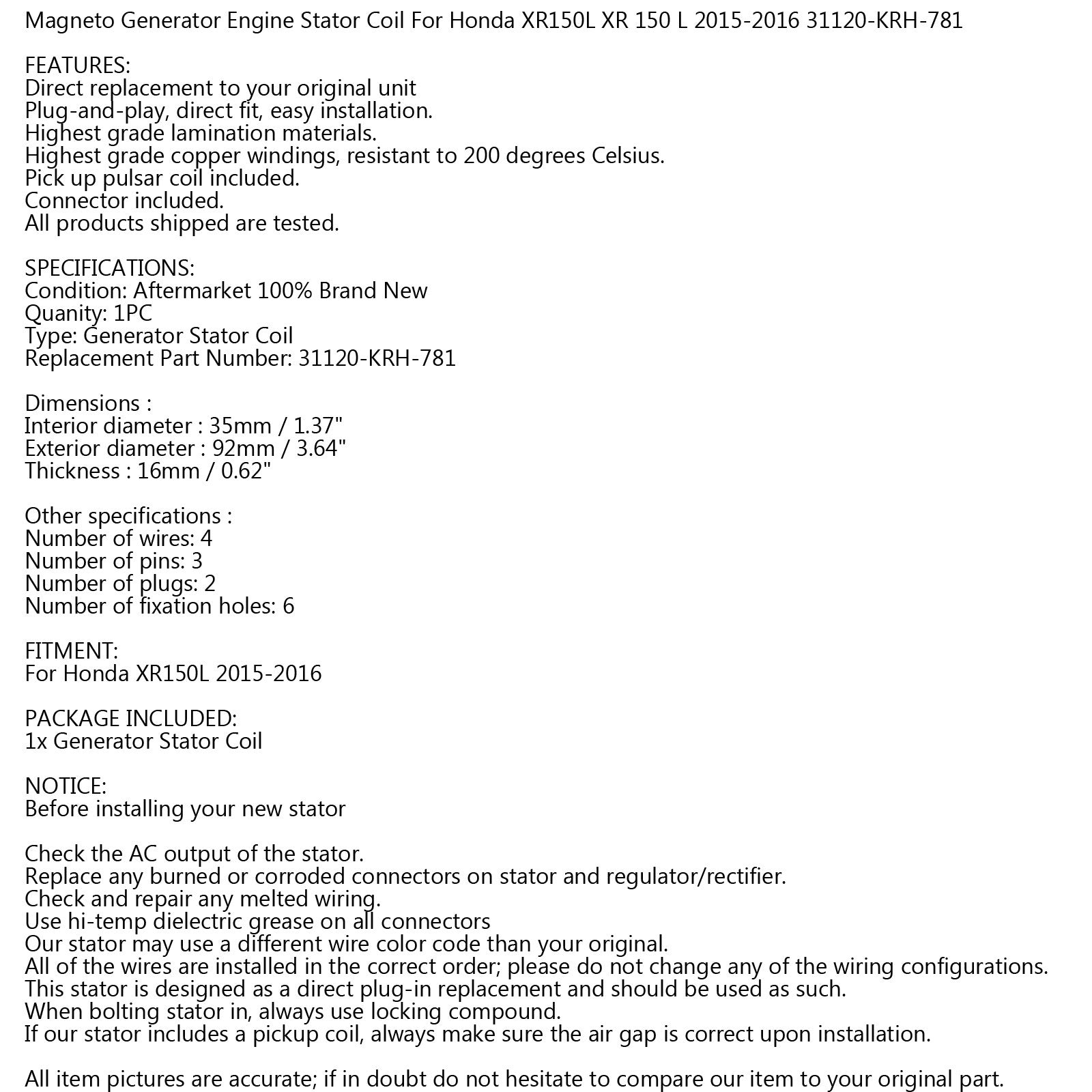

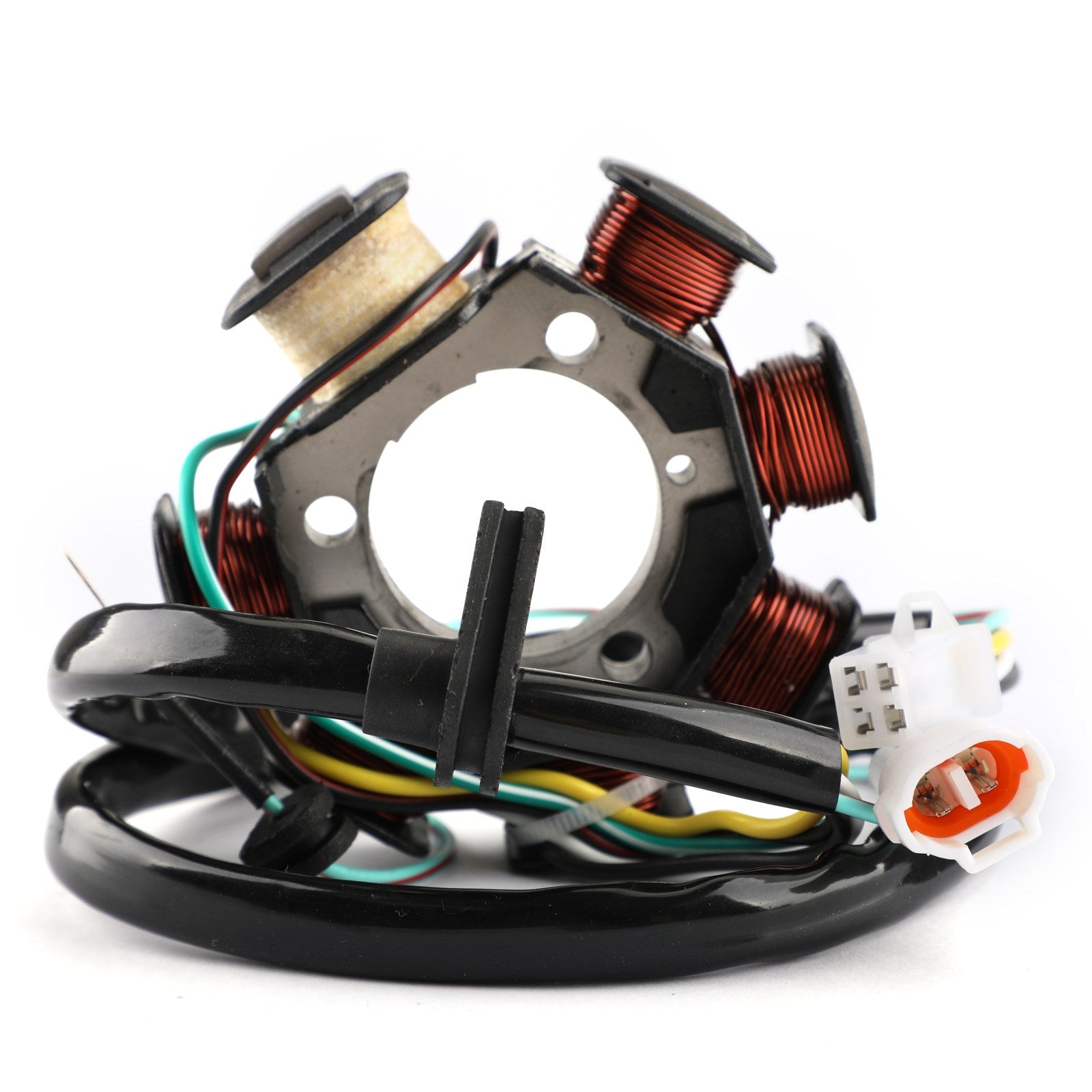

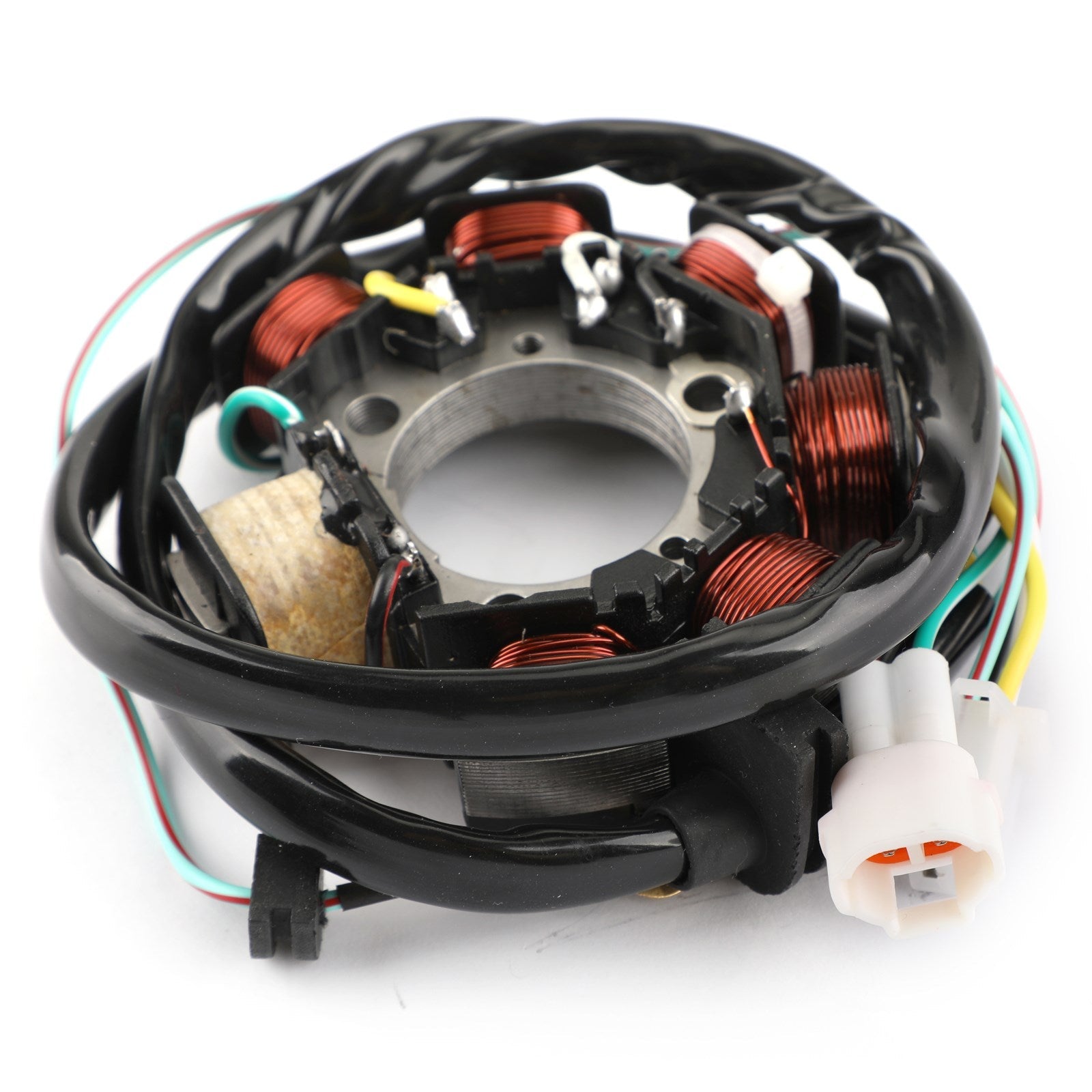

Alternator Stator Coil For Honda XR 150 L XR150L 2015-2016 Repl.# 31120-KRH-781

Magneto Generator Engine Stator Coil For Honda XR150L XR 150 L 2015-2016 31120-KRH-781

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

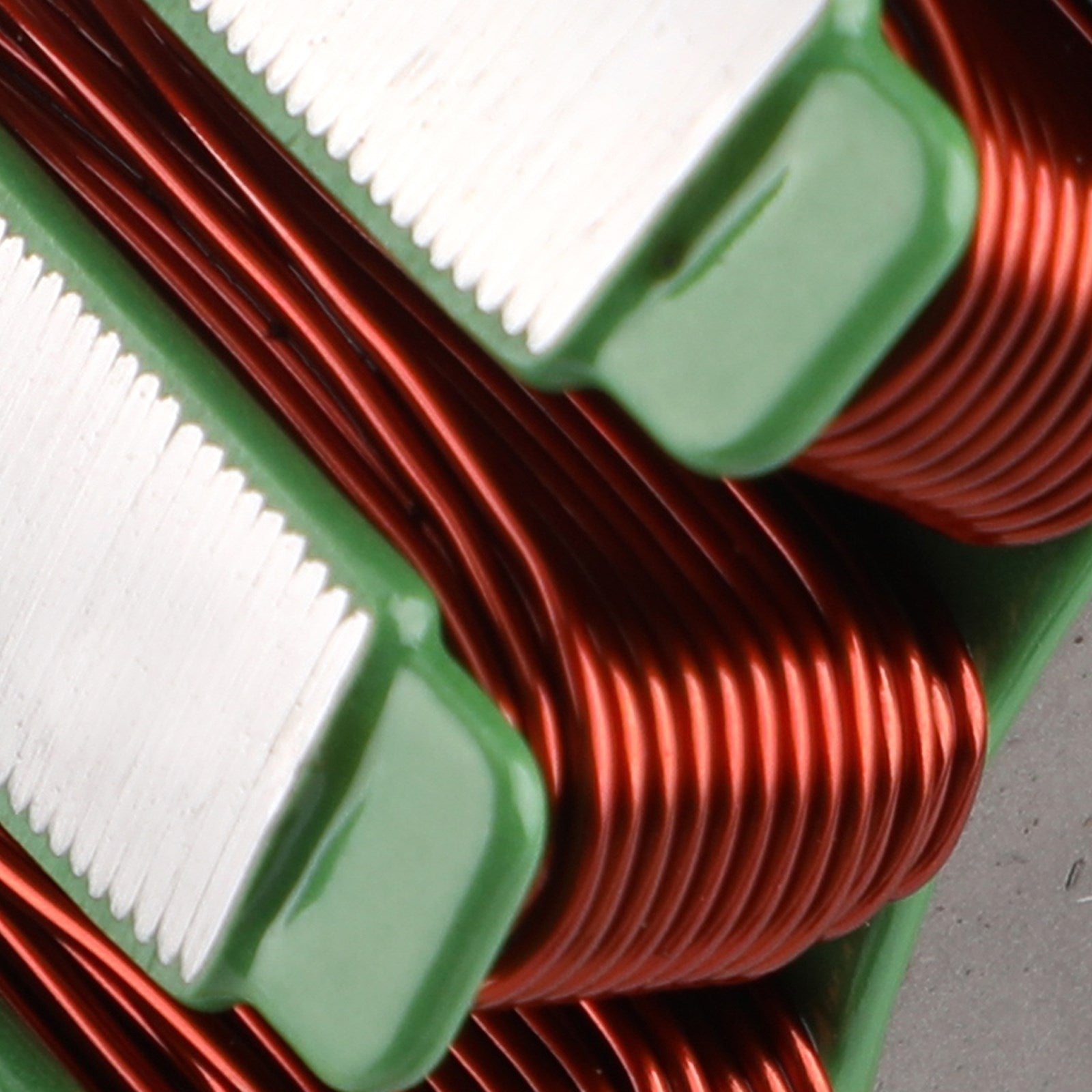

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

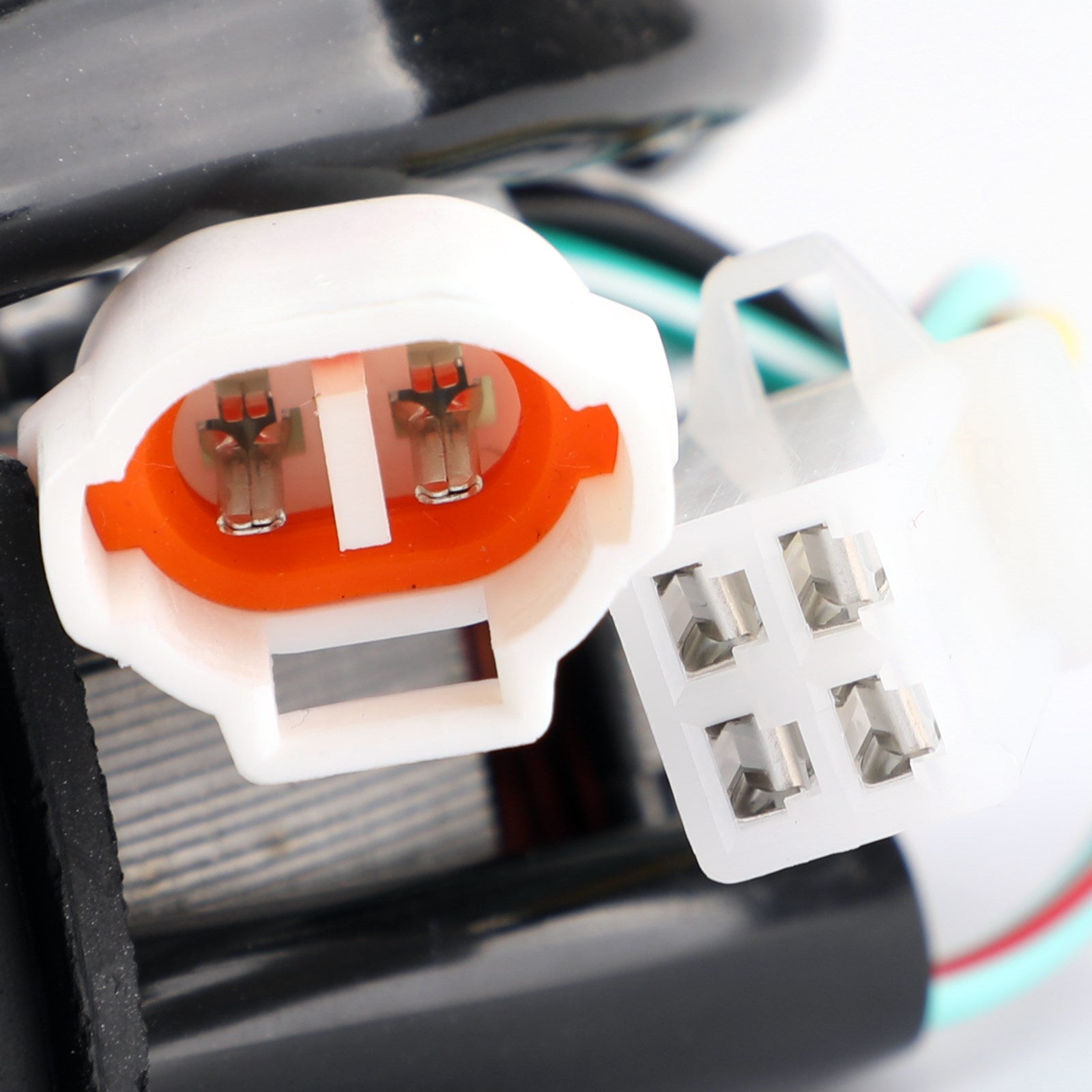

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-KRH-781

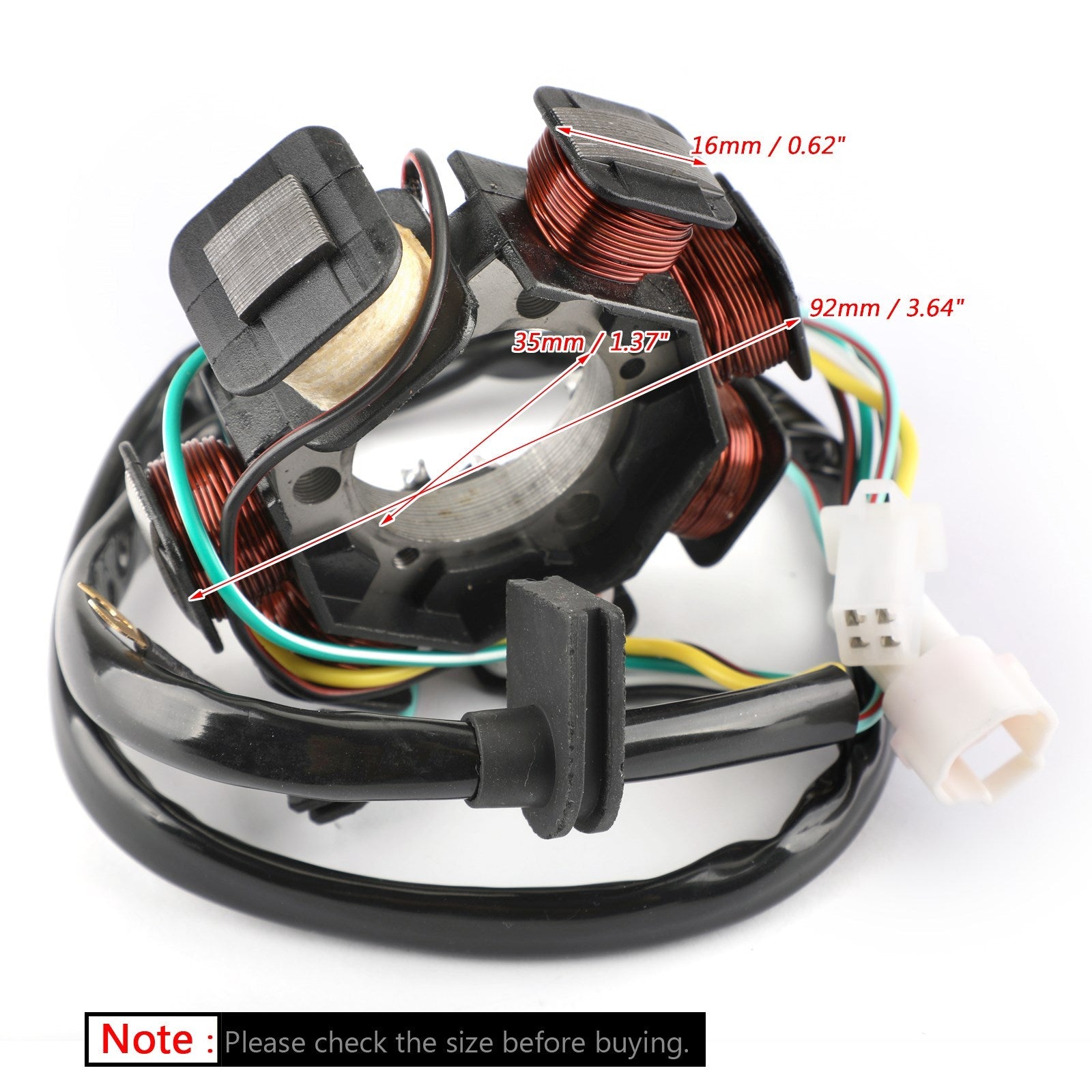

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 92mm / 3.64"
Thickness : 16mm / 0.62"

Other Specifications :
Number of wires: 4
Number of pins: 3
Number of plugs: 2
Number of fixation holes: 6

Fitments:
For Honda XR150L 2015-2016

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
